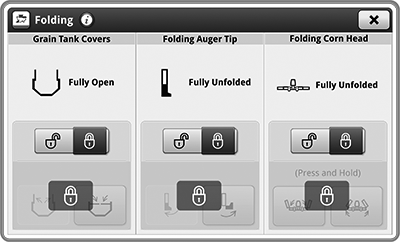

Folding Main Page

H119899
H119899-UN-06JAN17

Folding

Underscored text identifies that additional information is available within this section or another section of this publication.

Main page shown is for example only. Your main page may differ depending on options or connected equipment.

Folding Application is used to operate folding equipment.

H114615
H114615-UN-06JAN17

Lock/Unlock

Items Accessible on Folding main page:

Some items below are only displayed if machine is equipped with the associated option.

Grain Tank Covers Items:

Grain Tank Covers— lock or unlock grain tank covers folding function buttons.

H114620
H114620-UN-06JAN17

Locked Status

Content Blocker— shows locked status. Prevents accidental engagement of the function.

H114615
H114615-UN-06JAN17

Lock/Unlock

Folding Auger Tip Items:

Folding Auger Tip— lock or unlock auger tip folding function buttons.

H114624
H114624-UN-06JAN17

Locked Status

Content Blocker— shows locked status. Prevents accidental engagement of the function.

H114615
H114615-UN-06JAN17

Lock/Unlock

Folding Corn Head (With Position Sensors):

Folding Corn Head— lock or unlock corn head folding function buttons.

H116240
H116240-UN-06JAN17

Locked Status

Content Blocker— shows locked status. Prevents accidental engagement of the function.

H114615
H114615-UN-06JAN17

Lock/Unlock

Folding Corn Head (Without Position Sensors):

Folding Corn Head— lock or unlock corn head folding function buttons.

H114625
H114625-UN-06JAN17

Locked Status

Content Blocker— shows locked status. Prevents accidental engagement of the function.

SS43267,0000808-19-20170127
