Calibrations and Procedures Overview

Underscored text identifies that additional information is available within this section or another section of this publication.

Main page shown is for example only. Your main page may differ depending on options or connected equipment.

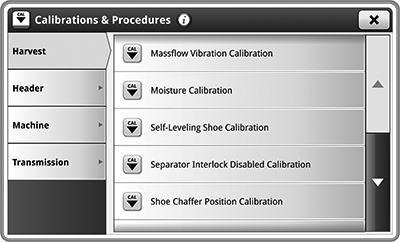

H119896
H119896-UN-18JAN17

Calibrations and Procedures

Calibrations and Procedures application provides centralized access to maintenance procedures and calibrations for the machine.

H119225
H119225-UN-23SEP16

Harvest Tab

Harvest Tab

Mass Flow Vibration

Moisture Sensor Temperature

Yield

Amber Flasher

Chassis Tilt

Threshing Clearance (Hydraulic)

Concave Air Removal

Concave Leveling

ActiveYield™

Threshing Clearance (STS Electric)

Unloading Auger Engage

H119226
H119226-UN-23SEP16

Header Tab

Header Tab

Feeder House Speed

Header

Deck Plate Spacing

Feeder House Lateral Tilt Speed

Wings

Reel and Cutterbar Position

Reel Position

Feeder House Tilt Fore/Aft Range

Feeder House Lateral Tilt Range
