Active Terrain Adjustment™

Underscored text identifies that additional information is available within this section or another section of this publication.

Main page shown is for example only. Your main page may differ depending on options or connected equipment.

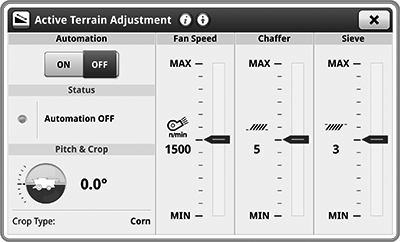

ATA allows cleaning fan, chaffer, and sieve to adjust automatically depending on the crop type and machine pitch when harvesting in uphill or downhill terrain.

H114647
H114647-UN-05JAN17

ON/OFF

Items Accessible on Active Terrain Adjustment™ Main Page:

Automation— enables ATA.

H114656
H114656-UN-05JAN17

Status Indicator

Status— displays overall system status or current adjustments being made by the system.

H115025
H115025-UN-05JAN17

Pitch & Crop

Pitch and Crop— displays current measured machine pitch and selected crop.

H115026
H115026-UN-06JAN17

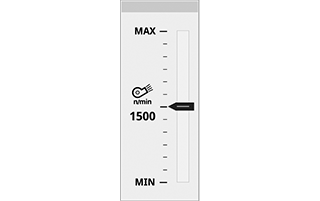

Fan Speed

Fan Speed— indicator shows the current fan speed.

H115027
H115027-UN-06JAN17

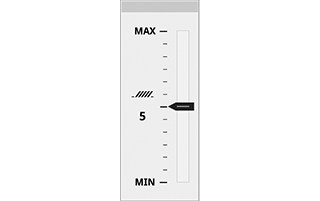

Chaffer

Chaffer— indicator shows the current chaffer position.

H115028
H115028-UN-06JAN17

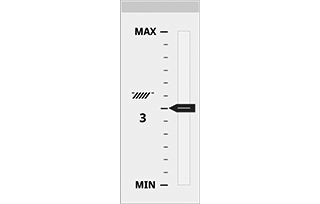

Sieve

Sieve— indicator shows current sieve position.

N118004
N118004-UN-22OCT15

Advanced Settings

Advanced Settings— access further settings and less common adjustments.

H114648
H114648-UN-05JAN17

Active Terrain

Run Page Modules

Modules for this application can be added to run pages using Layout Manager.

Example:

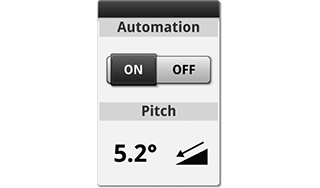

Active Terrain— allows you to enable/disable automation and see the current Pitch state of the machine as detected by ATA.

Different modules can be available for your application.
