Corner Post Display
Some items below are only displayed if machine is equipped with the associated option.
H117815-UN-28MAR16
Left-Hand Turn Indicator
Left-Hand Turn Indicator— left-hand turn signal is active. Simultaneous operation of right-hand/left-hand turn indicators shows your warning lights are activated.
H117819-UN-28MAR16
Stop Operation
Stop Operation (Red)— illuminates and requires the machine be stopped at once and the problem corrected. Diagnostic trouble code is shown on the armrest display until the problem is resolved.
H117817-UN-28MAR16
Operator Alert
Operator Alert (Yellow)— illuminates and flashes when a problem exists with the machine. Requires the machine be stopped at earliest convenience. Diagnostic trouble code is shown on the armrest display.
H117818-UN-28MAR16
Information Alert
Information Alert (Blue)— illuminates and flashes when diagnostic trouble code is active. Alerts you to be aware of a condition. When the alert is acknowledged, the screen message disappears.
H117816-UN-28MAR16
Right-Hand Turn Indicator
Right-Hand Turn Indicator— right-hand turn signal is active. Simultaneous operation of right-hand/left-hand turn indicators shows your warning lights are activated.
H117820-UN-28MAR16
Trailer Lights Indicator
Trailer Lights Indicator— when the trailer harness is connected, lights illuminate when turn signals and brakes are applied.
H117807-UN-28MAR16
High Beam Indicator
High Beam Indicator— illuminates when the high beam lights are activated.
H113811-UN-04JAN17
Exhaust Filter Cleaning Indicator
Exhaust Filter Cleaning Indicator— illuminates when exhaust filter system is actively performing exhaust filter cleaning.
H117822-UN-22DEC16

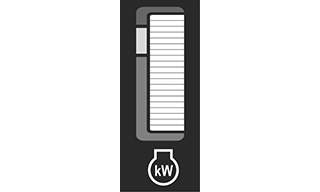

Engine Power Meter Indicator
Engine Power Meter Indicator— indicates the percentage of power the engine is using at any given time.
H117823-UN-22DEC16

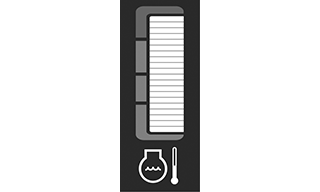

Engine Temperature Indicator
Engine Temperature Indicator— indicates the engine temperature. Green area indicates normal operating temperature, red indicates overheating condition.
H117824-UN-22DEC16

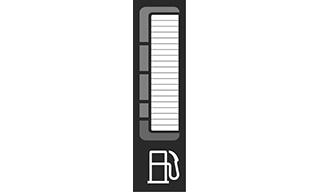

Fuel Gauge Indicator
Fuel Level Indicator— indicates the amount of fuel remaining in the fuel tank.
H118085-UN-22DEC16

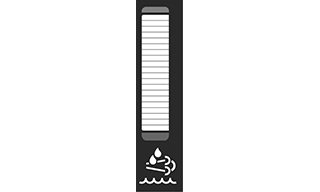

Diesel Exhaust Fluid (DEF) Level Indicator
Diesel Exhaust Fluid (DEF) Level Indicator— indicates how much fluid remains in the tank.
H117826-UN-22DEC16
Transmission Gear or Range Indicator
Transmission Gear or Range Indicator, 3-Speed Push-Button Shift Transmission (PBST) Machines— 1, 2, or 3 illuminates indicating the current gear selected.
H118558-UN-22DEC16
Transmission Gear or Range Indicator
Transmission Gear or Range Indicator, 2-Speed ProDrive™ Machines— 1 or 2 illuminates indicating the current gear selected.
H117827-UN-28MAR16
Park Brake Indicator
Park Brake Indicator— illuminates when the park brake is engaged.
H117828-UN-28MAR16
Neutral Indicator
Neutral Indicator— illuminates when the neutral position is selected.
H117829-UN-28MAR16
Engine Speed Indicator
Engine Speed Indicator— indicates the engine rpm speed.
H117830-UN-28MAR16
Vehicle Speed Indicator
Vehicle Speed Indicator— indicates the machine speed (km/h or mph).
H116357-UN-22DEC16
Header Height Numeric Display
Header Height Numeric Display— when running on ground height sensing psi or bar will be illuminated depending on units selected. In off ground height sensing the numbers will fluctuate according to sensor feedback and neither psi or bar will be illuminated.
H116356-UN-20DEC16

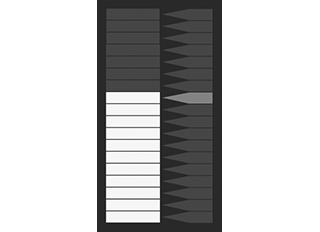

Header Height Display
Header Height Display— the green arrow is the set point and the white bars represent the current position.
H116354-UN-19DEC16
Header Activation Number
Header Activation Number— indicates the currently selected activation button.
H116362-UN-19DEC16
Deck Plate Position Resume
Deck Plate Position Resume— illuminates when deck plate position resume is enabled.
H116360-UN-19DEC16
Dial-A-Speed™
Dial-A-Speed— illuminates when Dial-A-Speed is enabled.
H116361-UN-19DEC16
Reel Resume
Reel Resume— illuminates when reel the resume is enabled.
H116353-UN-19DEC16
Header Height Resume
Header Height Resume— illuminates when the header height resume is enabled.
H116358-UN-19DEC16
Header Height Sensing
Header Height Sensing— illuminates when header height sensing is active.
H117843-UN-22JUN17
Active Header Float
Active Header Float— illuminates when the active header float is active.
H116359-UN-19DEC16
Lateral Tilt Display
Lateral Tilt Display— indicates position of the feeder house frame.
H117835-UN-22DEC16

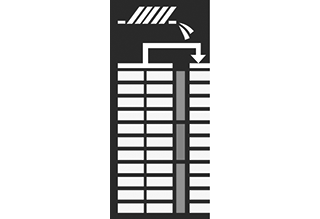

Shoe Loss Indicator
Shoe Loss Indicator— indicates grain loss from shoe.
H117836-UN-22DEC16

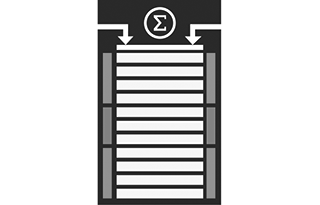

Total Loss Indicator
Total Loss Indicator— indicates the combined grain loss from shoe and separator area.
H117837-UN-22DEC16

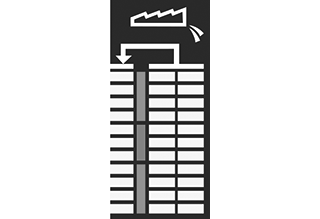

Separator Loss Indicator
Separator Loss Indicator— indicates the grain loss from separator area.
H117838-UN-22DEC16

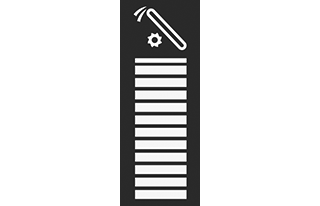

Tailings Volume Indicator
Tailings Volume Indicator— indicates volume of tailings return.|
