Multi-function Lever
H117033-UN-15APR16
Quick Stop Switch
Quick Stop Switch— allows you to simultaneously shut OFF multiple systems in the case of an emergency.

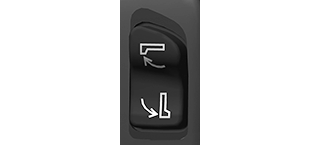

H117003-UN-22DEC16
Unloading Auger Switch
Unloading Auger Swing Switch— allows you to swing unloading auger in or out manually or automatically.
H117004-UN-28MAR16
Unloading Auger Drive Switch
Unloading Auger Drive Switch— allows you to engage or disengage the unloading auger and indicator light.
H117006-UN-28MAR16
Programmable Button
Programmable Buttons— depending on the machine options and header types, the buttons are programmable to different functions. (See Controls Setup Application in Onscreen Help for more information.)
H117005-UN-15APR16
AutoTrac™ Resume Button
AutoTrac™ Resume Button (If Equipped)— allows you to activate or deactivate system.AutoTrac™
H116348-UN-19DEC16
Header Raise/Lower Switch
Header Raise/Lower and Tilt (If Equipped) Switch— allows you to raise or lower header and tilt the feeder house.
H116349-UN-19DEC16
Reel Raise/Lower, Reel Fore/Aft
Reel Raise/Lower, Reel Fore/Aft (If Equipped) Switch— allows you to control the position of the reel.
H116349-UN-19DEC16
Feeder House Backshaft Speed, Adjustable Corn Head Deck Plates
Feeder House Backshaft Speed, Adjustable Corn Head Deck Plates Switch (If Equipped)— allows you to control feeder house backshaft speed or adjustable corn head deck plates.
H116346-UN-19DEC16
Header Activation Buttons
Header Activation Buttons— allows you to activate multiple automatic header control systems by pressing one of the three buttons.|
AutoTrac is a trademark of Deere & Company |
SS43267,0000815-19-20170518 |
