Left-Hand Cab Items

H118077
H118077-UN-15APR16

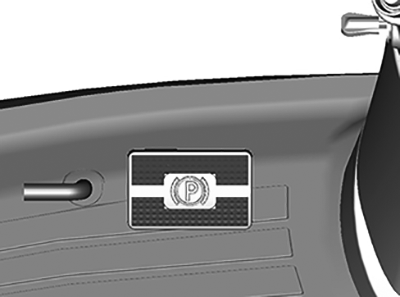

Manual Park Brake

Manual Park Brake (If Equipped)— allows you to manually set the parking brake.

Machine is equipped with manual engage and disengage the park brake pedals. Be certain to engage the park brake when the engine is running and the machine is parked or before leaving the machine with the engine turned OFF.

Press the right pedal to engage the park brake and the left pedal to disengage the park brake.

H118074
H118074-UN-15APR16

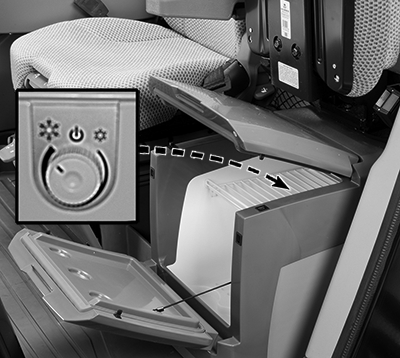

Refrigerator

Refrigerator (If Equipped)— provides a space to keep food or beverages cool throughout the day.

Refrigerator operates only when the key switch is in the Run position and MUST remain plugged into the auxiliary outlet to keep food or beverages cold.

Raise the seat bottom to open the refrigerator top cover. Refrigerator front cover can also be opened without raising the seat bottom.

Turn the temperature control dial clockwise to decrease temperature or counterclockwise to increase temperature.

SS43267,0000818-19-20170127
