Overhead Controls
H118064-UN-22DEC16

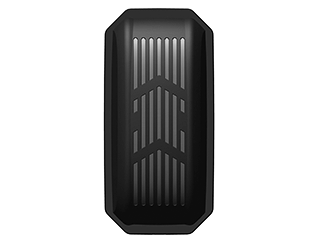

Microphone
Microphone (Optional)— allows you to communicate hands-free using a Bluetooth® cell phone. (Bluetooth™ must be enabled.)Key switch must be in the Run position.
H118065-UN-22DEC16

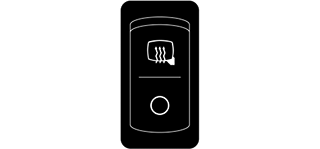

Mirror Heater Button
Mirror Heater Button— activates mirror heaters to remove ice and fog.- Press top of the switch to activate mirror heat.
- Press bottom of the switch to deactivate mirror heat.
Key switch must be in the Run position.
H118066-UN-15APR16
Mirror Control Buttons
Mirror Control Buttons— allow you to select and adjust either the right-hand or left-hand cab mirrors.- Select mirror to adjust using the top button.
- Selected mirror can be moved up or down or left or right using the bottom button. Move the button in the direction you desire the mirror to move.
Key switch must be in the Run position.
|
Bluetooth is a trademark of Bluetooth SIG |
SS43267,0000819-19-20170127 |
