Operate Turn Signals, Horn and High and Low Beam
H117803-UN-28MAR16

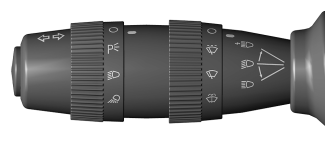

Turn Signals
Turn Signals— push up lever for a right turn or pull down for a left turn. Return lever to the center position after completing turn.
H117804-UN-28MAR16
Right-Hand Turn
Right-Hand Turn— push lever up for a right-hand turn.
H117805-UN-28MAR16
Left-Hand Turn
Left-Hand Turn— pull down for a left-hand turn.
H117806-UN-28MAR16
Horn
Horn— push inward on end of lever to activate the horn.
H117048-UN-22DEC16
High Beam
High Beam— push lever forward to activate the high beam headlights. Pull lever toward you and release to flash the high beam.
H117808-UN-28MAR16
Low Beam
Low Beam— pull lever into center position to operate the low beam.
H117886-UN-29MAR16
Filed Light Preset 1
Field Light Preset 1— press to select Field Light Preset 1.
H117887-UN-29MAR16
Field Light Preset 2
Field Light Preset 2— press to select Field Light Preset 2.|
SS43267,000081E-19-20170518 |
