Console and Display

H118078
H118078-UN-19JAN17

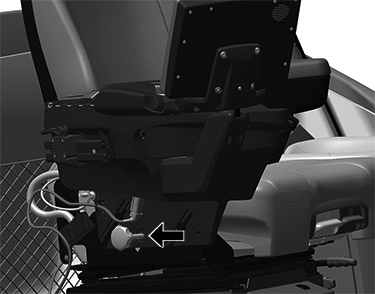

Armrest Control Console

Armrest Control Console— loosen knob and slide the armrest control console up/forward or down/back in slots on outer plate. Tighten knob to lock the armrest into position.

N128644
N128644-UN-15FEB17

USB Charging

USB Charging— allows you to charge mobile devices. These ports are located inside the console storage compartment. They are not connected to the radio or the display.

N128645
N128645-UN-15FEB17

Auxiliary Outlet

Auxillary Outlet— used for powering devices (12 V). Located inside the console storage compartment.

H117794
H117794-UN-19JAN17

Arm

Arm— rotate arm left/right to the desired operating position.

This function is only available on machines not equipped with seat swivel configurations.

H117795
H117795-UN-15APR16

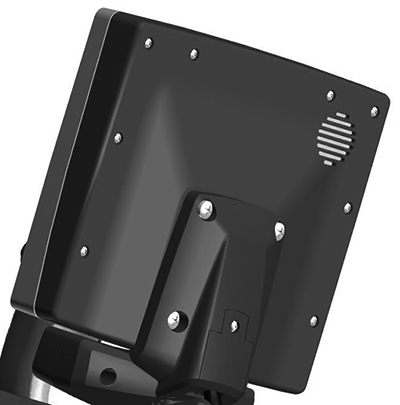

Display

Display— rotate display left/right to the desired operating position.
