Header Engage

H117924
H117924-UN-22DEC16

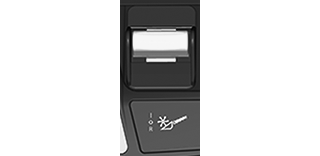

Header Engage

Push down and forward to lock the switch in ON position or pull back on the switch to turn OFF.

System Requirements:

  • Separator Engage must be ON.
  • Road Transport Disconnect must be in field position.
  • You must be seated for the header to operate.

If you leave seat after engagement, header continues to operate for five seconds before disengaging.
