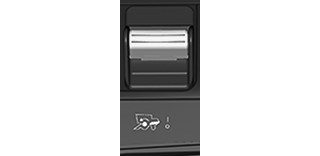

Separator Engage

H117925
H117925-UN-22DEC16

Separator Engage

Push down and forward to lock the switch in ON position or pull back on the switch to turn OFF.

System Requirements:

  • Engine must be running at the low idle.
  • Road Transport Disconnect must be in field position.
  • You must be seated for the separator to operate.

Separator disengages when discharge beater speed drops below 300 rpm.

If you leave operator seat after engagement, separator rotational alarm sounds and outside lights will flash to alert operator of leaving seat while separator is still rotating. Lights and alarm sounds continue until the separator has come to a complete stop.
