Moisture Sensor Temperature Offset

Procedure Requirements:

Engine State	Running
Operating State	Parked on a level surface

Procedure to Perform:

1.
   N120226-UN-23FEB16

   Begin Calibration

   Select Begin Calibration to begin procedure.

---




2.
   H119223-UN-18JAN17

   Sensor Temperature

   Select Sensor Temperature.

---




3.

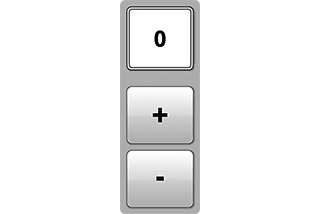

   H119224-UN-18JAN17

   Sensor Temperature

   Select plus (+) to increase or minus (-) to decrease Sensor Temperature.

---




4.
   N118093-UN-16FEB16

   Save

   Confirm Calibration by selecting Save.

---




5.
   N118094-UN-18JAN17

   Cancel

   Select Cancel to return to previous page.

---
