Speed

Spreader speed adjustments allow for optimal distribution of material across the width of the spread.

Adjust the spread width setting before adjusting the spreader speed.

Modify When:

• Changing crop type.
• Size of material exiting chopper is getting larger or smaller.
• Changing header size.
• Compensating for blowing wind.

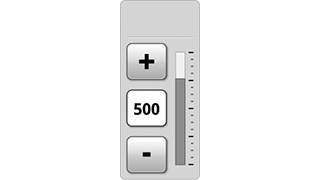

H116987-UN-04JAN17

Speed

1. Turn on the machine.

2. Engage separator.

3. Current setting is displayed by bar gauge.

   Select plus (+) to increase or (-) to decrease desired speed.

   When changes are made to the spreader speed, the spreader width diagram will not change. It remains filled to previous width setting regardless of spreader speed adjustments.

Allowable Settings for Corn:

Minimum: 350

Maximum: 550

Default: 500

Increment: 5

Allowable Settings for Small Grain:

Minimum: 600

Maximum: 800

Default: 700

Increment: 5

H118126-UN-03JAN17

Input Field

When speed is changed, the bar gauge representing it turns yellow to match the yellow bounding box of the input field.

1. Select to activate Navigation Bar and Armrest Adjustment Dials.

2.
   H115035-UN-14MAR16

   Navigation Bar Adjustment Dial


   H115034-UN-28MAR16

   Armrest Adjustment Dial

   Use Navigation Bar or Armrest Adjustment Dial to select desired speed.
   • Turn dial clockwise to increase value.
   • Turn dial counterclockwise to decrease value.



---




3.
   H114674-UN-03JAN17

   Close

   Select to close.

---
