Automatic Adjustment

When Automatic Adjustment is enabled, Active Terrain Adjustment™ (ATA) maintains material capacity by reducing fan speed and opening chaffer and sieve elements to reduce grain loss and elevated tailings when traveling uphill. The opposite occurs when traveling downhill to avoid degraded grain tank cleanliness.

H118540
H118540-UN-05JAN17

Status

Automatic Adjustment Indicators Displayed:

Status— displays that the system is applying offsets.

H115033
H115033-UN-05JAN17

Black Marker

H114664
H114664-UN-05JAN17

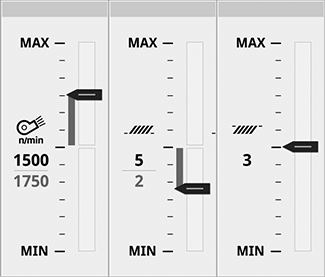

ATA Adjustment

ATA Adjustment— indicator shows the amount of offset for fan speed, chaffer, and sieve from the initial setpoint.

Active Terrain Adjustment is a trademark of Deere & Company

SS43267,00008AB-19-20170127
