Downhill Sensitivity allows you to accelerate or decelerate system reaction to vehicle pitch to help maintain grain cleanliness while harvesting downhill.

Higher sensitivity values react more quickly to changes in pitch.

Modify When:

  • Active Terrain Adjustment™ (ATA) system is making adjustments too soon or too late, causing grain loss or tailings to be higher than on level land.
  • Adjust the sensitivity lower if cleaning shoe loss or tailings levels are elevated.
  • Adjust the sensitivity higher if grain tank is not clean.

N118004
N118004-UN-22OCT15

Advanced Settings

Procedure to Modify:

  1. Select Advanced Settings button.

  2. H119778
    H119778-UN-05JAN17

    Downhill Sensitivity

    Select plus (+) to increase or minus (-) to decrease desired sensitivity.

    Minimum: -100%

    Maximum: 100%

    Increment: 10%

    H114653
    H114653-UN-05JAN17

    Offsets

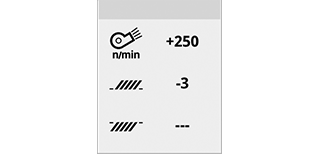

    Current offsets displayed for fan/chaffer/sieve from the initial setpoint. Offsets displayed change as machine moves uphill or downhill.


  3. H114674
    H114674-UN-03JAN17

    Close

    Select to close.


N118004
N118004-UN-22OCT15

Advanced Settings

Alternative Procedure to Modify:

  1. Select Advanced Settings button.

  2. H114652
    H114652-UN-05JAN17

    Value

    Select to activate Navigation Bar and Armrest Adjustment Dials.


  3. H115035
    H115035-UN-14MAR16

    Navigation Bar Adjustment Dial

    H115034
    H115034-UN-28MAR16

    Armrest Adjustment Dial

    Use Navigation Bar or Armrest Adjustment Dial to select desired sensitivity.

    • Turn dial clockwise to increase value.
    • Turn dial counterclockwise to decrease value.


  4. H114674
    H114674-UN-03JAN17

    Close

    Select to close.
