Maximum Ground Speed

Maximum Ground Speed sets the maximum allowable ground speed for HarvestSmart™to operate.

Multi-function lever position always limits maximum ground speed.

Modify When:

• You do not want your combine running over a specific speed because the terrain is rough or feeding conditions exist that could plug the header. Set it to the speed at which you want to operate.

EX: Your head becomes limited at 8 km/h (5 mph). Set ground speed to 7.5 km/h (4.7 mph).

H118568-UN-20JAN17

Maximum Ground Speed

1. Select to adjust Maximum Ground Speed.

2.

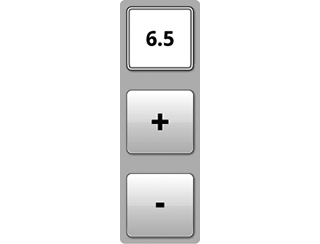

   H118570-UN-31JAN17

   Maximum Ground Speed

   Select plus (+) to increase or minus (-) to select desired ground speed.

   Minimum— 2.0 km/h (1.2 mph)

   Maximum— 14.0 km/h (8.4 mph)

   Increments— 0.1 km/h (0.1 mph)

---




3.
   H118559-UN-20JAN17

   Close

   Select to close.

---

H118573-UN-20JAN17

Maximum Ground Speed

1. Select to activate Armrest Adjustment Dial.

2.
   H115034-UN-28MAR16

   Armrest Adjustment Dial

   Use Armrest Adjustment Dial to select desired ground speed.
   • Turn dial clockwise to increase value.
   • Turn dial counterclockwise to decrease value.



   Minimum— 2.0 km/h (1.2 mph)

   Maximum— 14.0 km/h (8.4 mph)

   Increments— 0.1 km/h (0.1 mph)

---
