Response Aggressiveness

Response Aggressiveness controls how quickly the HarvestSmart™ system responds to crop density changes.

Modify When:

Increase When:

You want the machine to react faster to changes in harvesting conditions.

Decrease When:

You want the machine to react slower to changes in harvesting conditions.

H114682-UN-20JAN17

Aggressiveness

1. Select to access Response Aggressiveness.

2.

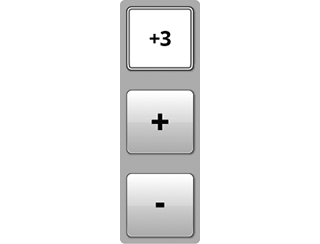

   H118571-UN-31JAN17

   Aggressiveness

   Select plus (+) to increase or minus (-) to decrease desired aggressiveness.

   Minimum— -10

   Maximum— +10

   Increments— 1.0

---




3.
   H118559-UN-20JAN17

   Close

   Select to close.

---

H118574-UN-20JAN17

Aggressiveness

1. Select to activate Armrest Adjustment Dial.

2.
   H115034-UN-28MAR16

   Armrest Adjustment Dial

   Use Armrest Adjustment Dial to select desired aggressiveness.
   • Turn dial clockwise to increase value.
   • Turn dial counterclockwise to decrease value.



   Minimum— -10

   Maximum— +10

   Increments— 1.0

---
