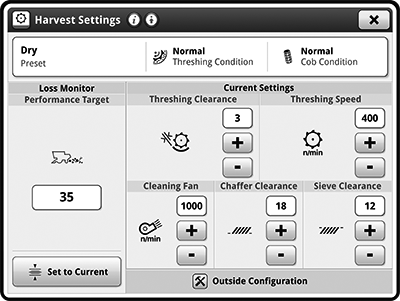

Harvest Settings Main Page

H120310
H120310-UN-27JAN17

Harvest Settings

Underscored text identifies that additional information is available within this section or another section of this publication.

Main page shown is for example only. Your main page may differ depending on options or connected equipment.

Harvest Settings is used to adjust the threshing and cleaning performance for minimum harvest loss based on crop harvested and crop conditions.

Some items below are only displayed if machine is equipped with the associated option.

H116974
H116974-UN-27JAN17

Load Harvest Settings

Items Accessible on Harvest Settings Main Page:

Load Harvest Settings— allows you to make default selections on Presets, Threshing Conditions, and Straw/Cob Conditions to help grain cleanliness and grain loss.

H119104
H119104-UN-30JAN17

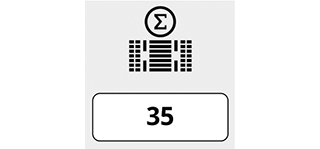

Performance Target

Performance Target— allows you to select the acceptable grain loss for your machine.

H119125
H119125-UN-27JAN17

Set To Current

Set to Current—  select to set the new "acceptable loss" to the current loss level.

H113683
H113683-UN-27JAN17

Threshing Clearance

Threshing Clearance— allows you to modify the threshing clearance.

H113685
H113685-UN-27JAN17

Threshing Speed

Threshing Speed— allows you to modify the threshing speed.

H113684
H113684-UN-27JAN17

Cleaning Fan

Cleaning Fan— allows you to modify the fan speed.

H116095
H116095-UN-27JAN17

Outside Configuration

Outside Configuration— shows the external machine adjustments that must be made prior to harvesting a selected crop type.

N118004
N118004-UN-22OCT15

Advanced Settings

Advanced Settings— allows you to access further adjustments and less common settings.

H113706
H113706-UN-27JAN17

Chaffer Clearance

Chaffer Clearance— allows you to modify the opening of the chaffer elements.

H113693
H113693-UN-27JAN17

Sieve Clearance

Sieve Clearance— allows you to modify the opening of the sieve elements.

H116117
H116117-UN-30JAN17

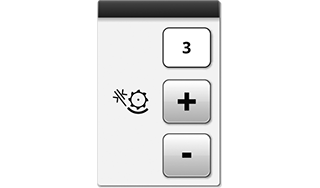

Clearance

Run Page Modules:

Modules for this application can be added to the run pages using Layout Manager.

Example:

Clearance— allows you to adjust the threshing clearance.

Different modules can be available for your application.

SS43267,0000963-19-20170621
