Current Settings | Threshing Speed

Threshing Speed allows you to modify the threshing speed for varying crop conditions.

For the threshing speed settings, refer to Crop Settings section in your Operator's Manual.

Modify To:

Increase Threshing Speed To:

• Allow grain to be removed from the other crop material before it escapes the separator.
• Improve material flow.
• Achieve more capacity in tough material conditions.
• Improve handling in tough straw.
• Reduce the risk of plugging when taking in large amounts of material.

Decrease Threshing Speed To:

• Reduce power consumption; reduce threshing speed in easy threshing grain for improved efficiency.
• Improve grain sample quality; generate less chaff and foreign material in the cleaning shoe by reducing threshing speed.
• Reduce grain damage; broken kernels and splits can occur if the threshing speed is too fast, even if the concave clearance is set correctly.

The threshing speed may increase about 30 rpm over 4 hours as the oil temperature increases. Adjust the speed as necessary.

H113685-UN-27JAN17

Threshing Speed

1. Engage the separator and run the engine at high idle.

2. Select to modify the threshing speed.

3.

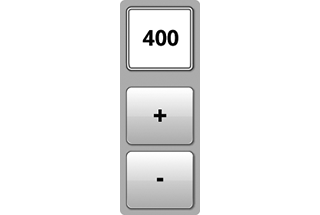

   H116279-UN-30JAN17

   Adjustment

   Select plus (+) to increase or minus (-) to decrease speed or select the input field and use the Armrest Adjustment Dial to make desired speed changes.

   •
     H118087-UN-27JAN17

     Input Field


     H115034-UN-28MAR16

     Armrest Adjustment Dial

     Turn the dial clockwise to increase the value.

   ---

   • Turn the dial counterclockwise to decrease the value.



   Threshing has a two speed gearbox, with high and low speeds.  Minimum and Maximum values may require you to change the gearbox setting.  See Operator's Manual for further information on which speed should be selected.

   Depending on machine configurations, some values may not be reached.

   Minimum: 200 rpm

   Maximum: 1000 rpm

   Increment: 10 rpm

---




4.
   H116113-UN-27JAN17

   Close

   Select to close.

---
