Current Settings | Chaffer Clearance

Chaffer Clearance allows you to modify the opening of the chaffer elements to improve the grain cleanliness and reduce the cleaning shoe loss for varying crops and conditions.

For the chaffer clearance settings, refer to Crop Settings section in your Operator's Manual.

Modify To:

Increase Chaffer Clearance To:

• Reduce cleaning shoe loss; allows the grain to fall through sooner before it can escape the cleaning shoe.
• Reduce tailings; allows the grain to fall through sooner before it is forced into the tailings.

Decrease Chaffer Clearance To:

• Improve sample quality; reduce the amount of larger, foreign material in the grain tank.

H113706-UN-27JAN17

Chaffer Clearance

1. Select to set the chaffer clearance.

2.
   H116993-UN-30JAN17

   Adjustment

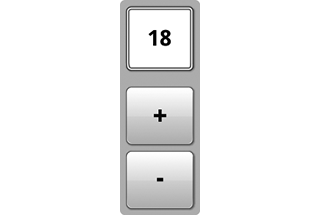

   Select plus (+) to increase or minus (-) to decrease the desired chaffer clearance.

---




3.
   H118089-UN-27JAN17

   Input Field


   H115034-UN-28MAR16

   Armrest Adjustment Dial

   Turn the dial clockwise to increase the value.

---




4. Turn the dial counterclockwise to decrease the value.

   Depending on machine configurations, some values may not be reached.

   General Purpose:

   Minimum: 0

   Maximum: 22

   Increment: 1

   Deep Tooth:

   Minimum: 0

   Maximum: 30

   Increment: 1

5.
   H116113-UN-27JAN17

   Close

   Select to close.

---
