Header

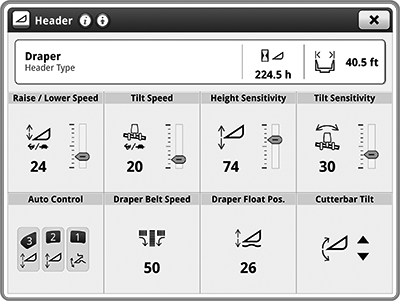

H120312-UN-20DEC16
Header
Underscored text identifies that additional information is available within this section or another section of this publication.Main page shown is for example only. Your main page may differ depending on options or connected equipment.
Header Main Page shows available features that can be adjusted for your attached header.
Some items below are only displayed if machine is equipped with the associated option.
H116126-UN-19DEC16
Header Type
Items Accessible on Header Main Page:Header Details— change header settings such as width, minimum reel speed, and row width.
H113542-UN-19DEC16
Header Type
Header Type— automatically determined by the front end equipment attached.If system does not recognize the type of header connected, Unknown Header is displayed.
H113543-UN-19DEC16
Hours
Hours— number of hours per header type recorded by the combine.
H113544-UN-19DEC16
Cut Width
Cut Width— measured width setting appears when platform type headers are detected.
H116127-UN-19DEC16
Row Width
Cut Width— number of rows and row width settings appear when row type headers are detected.
H113728-UN-19DEC16
Raise/Lower Speed
Raise/Lower Speed— controls speed of feeder house raise/lower function when in manual mode.
H114074-UN-19DEC16
Height Sensitivity
Height Sensitivity— controls sensitivity to changes in terrain of header raise/lower in automatic mode.
N118004-UN-22OCT15
Advanced Settings Icon
Advanced Settings— allows you to access further adjustments and less common settings.
H116962-UN-19DEC16
Auto Control
Auto Control— indicates status of which header configurations are enabled.
H113546-UN-19DEC16
Tilt Sensitivity
Tilt Sensitivity— controls sensitivity to changes in terrain of the feeder house lateral tilt movements when in automatic sensing and automatic float modes.
H113545-UN-19DEC16
Tilt Speed
Tilt Speed— controls speed of lateral tilt movements when in manual mode.
H116129-UN-19DEC16
Fore/Aft Tilt
Fore/Aft Tilt— controls the angle of the front face of the feeder house.
H114076-UN-19DEC16
HydraFlex™ Pressure
HydraFlex™ Pressure— controls cutterbar pressure for optimal ground following ability.
H114075-UN-19DEC16
Draper Belt Speed
Draper Belt Speed— controls the speeds of the side draper belts.
H116130-UN-19DEC16
Draper Float Position
Draper Float Position— controls the pressure in the cylinders for the gauge wheel float arms.
H114077-UN-19DEC16
Cutterbar Tilt
Cutterbar Tilt— controls the angle of the cutterbar in relation to the rest of the platform.
H116172-UN-19DEC16
Deck Plate Spacing
Deck Plate Spacing— displays the deck plate spacing.
H116173-UN-19DEC16
Backshaft Speed
Backshaft Speed— displays backshaft speed.

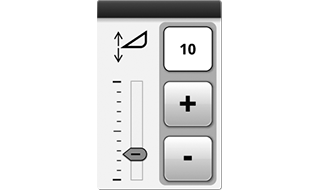

H116668-UN-20DEC16
Height Sensitivity
Run Page ModulesModules for this application can be added to run pages using Layout Manager.
Example:
Height Sensitivity— controls sensitivity to changes in terrain of header raise/lower in automatic mode.
Different modules can be available for your application.
|
