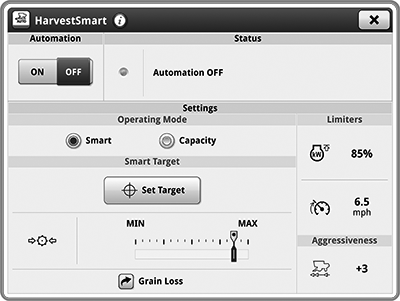

HarvestSmart™ Main Page

H120311
H120311-UN-20JAN17

HarvestSmart™

Underscored text identifies that additional information is available within this section or another section of this publication.

Main page shown is for example only. Your main page may differ depending on options or connected equipment.

HarvestSmart™ varies ground speed to maintain a constant flow of material through the machine based on several harvesting factors which maximizes productivity and reduces operator fatigue.

System may not perform optimally if used in the following conditions:

  • Extreme Hill Conditions
  • Tangled or Lodged Crop Conditions
  • Extremely Muddy Conditions

H113590
H113590-UN-20JAN17

ON/OFF

Items Accessible on HarvestSmart™ Main Page:

Automation— allows you to enable or disable HarvestSmart™.

H120559
H120559-UN-20JAN17

Status

Status— displays current system status and allows you to view requirements that must be met for the system to operate properly.

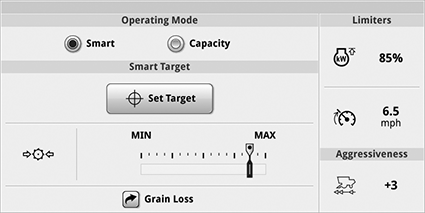

H118556
H118556-UN-20JAN17

Settings

Settings— allows you to select operating modes based on your desired performance factors.

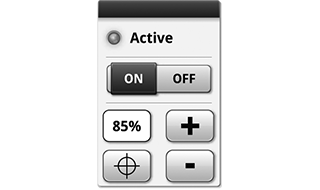

H116083
H116083-UN-31JAN17

HarvestSmart™

Run Page Modules

Modules for this application can be added to run pages using Layout Manager.

Example:

HarvestSmart™— allows you quick access to turn HarvestSmart™ ON/OFF.

Different modules can be available for your application.

H119888
H119888-UN-20JAN17

HarvestSmart™

Shortcut Keys

Shortcut keys for this application can be added to the shortcut bar using Layout Manager.

Example:

HarvestSmart™ Shortcut Key— allows you quick access to turn HarvestSmart™ ON/OFF.

Different shortcut keys can be available for your application.

HarvestSmart is a trademark of Deere & Company

SS43267,0000988-19-20170403
