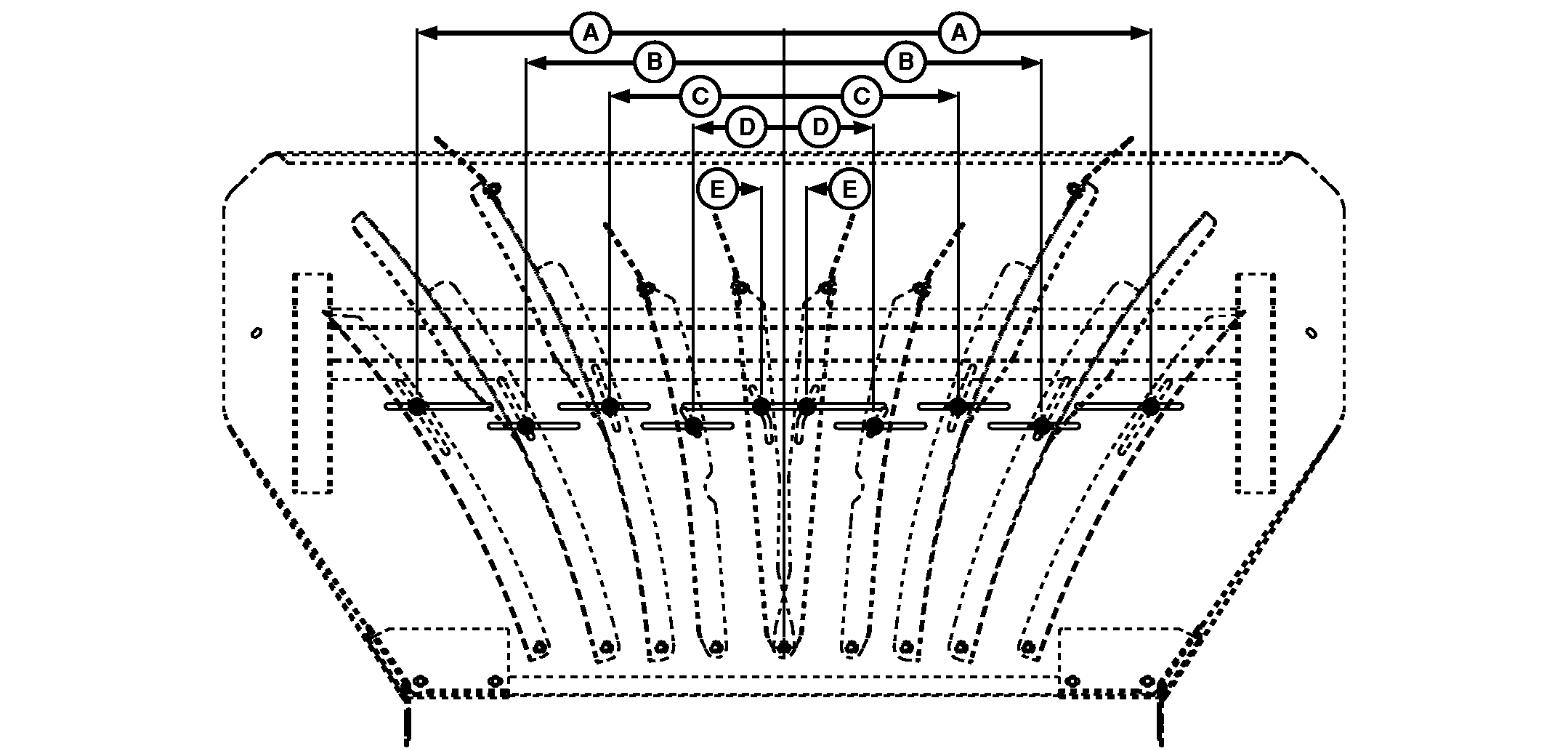

Chopper Vanes-Factory Settings

A-485 mm (19.1 in.) B-333 mm (13.1 in.)

C-227 mm (8.9 in.)

D-122 mm (4.8 in.)

E-35 mm (1.4 in.)

NOTE: For header sizes less than 7.6 m (25 ft.), lower tailboard support arms one hole at a time to reach desired spread width pattern, refer to

Chopper Tailboard-Adjusting in this section for further information.

OUO6075,0000220 -19-22OCT08-1/2

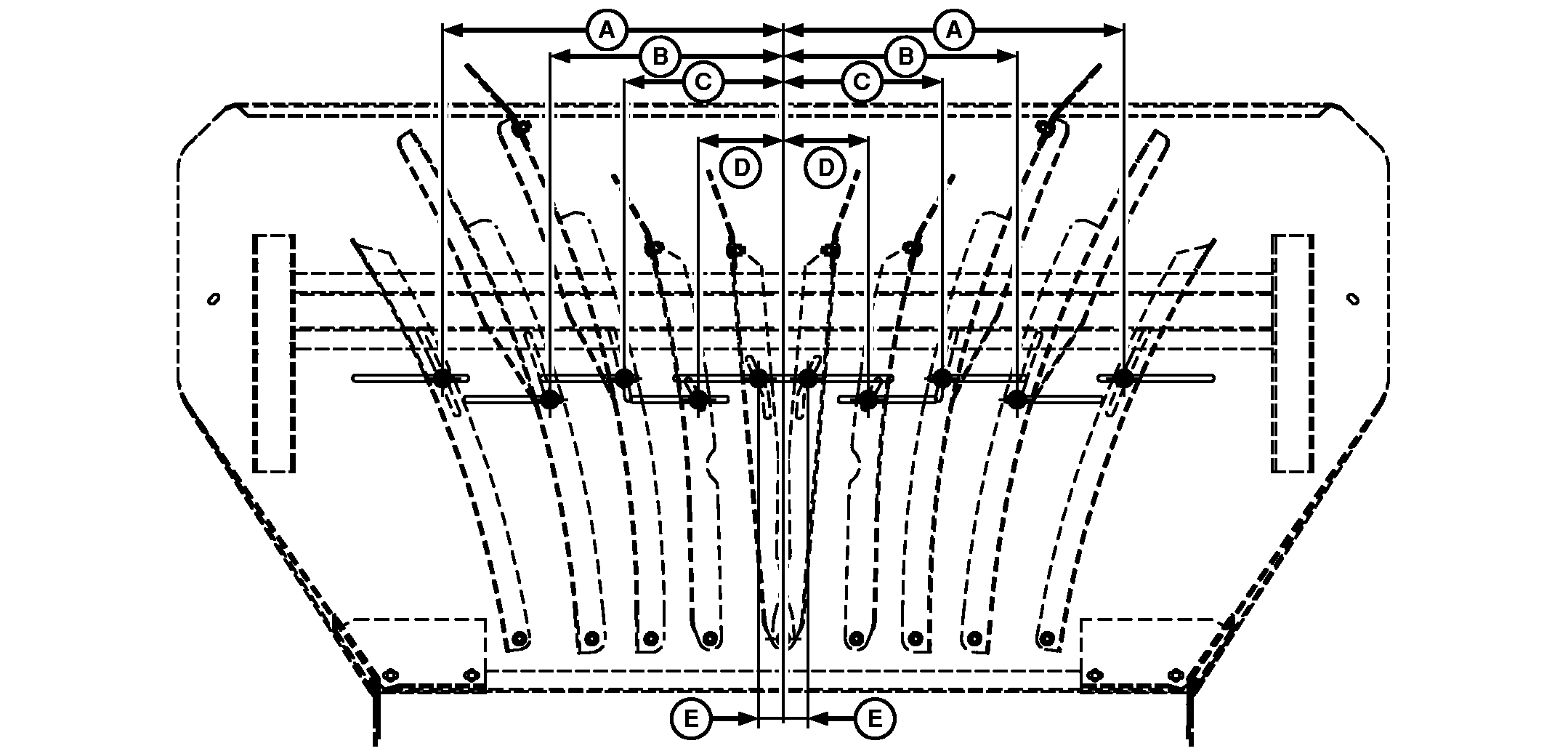

A-565 mm (22.2 in.) B-397 mm (15.6 in.)

C-268 mm (10.6 in.)

D-140 mm (5.5 in.)

E-35 mm (1.4 in.)

OUO6075,0000220 -19-22OCT08-2/2
