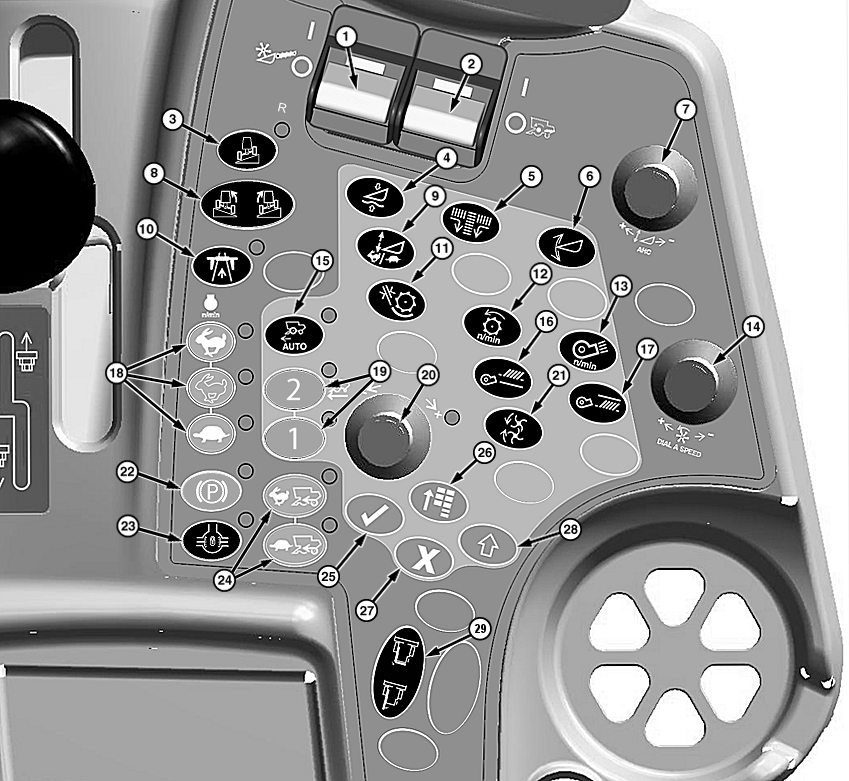

1-Header Engage and Feeder House Reverser Switch
2-Separator Engage Switch
3-Automatic Self-Leveling Shoe Switch (Optional)
4-Cutterbar Pressure Adjust Switch
5-Draper Belt Speed Adjust Switch
6-Draper Cutterbar Tilt Adjust Switch
|
7-Header Height/HydraFlex™ Pressure Control Dial
8-Manual Self-Leveling Shoe Switch (Optional)
9-Feeder House Rate/Sensitivity Adjust Switch
10-Road Transport Disconnect Switch
11-Threshing Clearance Adjust Switch
12-Threshing Speed Adjust Switch
|
13-Cleaning Fan Speed Adjust Switch
14-Dial-A-Speed™ Dial
15-Harvest Smart™ Feed Rate Enable Switch (Optional)
16-Chaffer Adjust Switch (Optional)
17-Sieve Adjust Switch (Optional)
18-Engine Speed Switches
19-Not Used
20-Selection Dial
|
21-Spreader Speed Adjust Switch
22-Not Used
23-Not Used
24-Four Wheel Drive Switches (Optional)
25-Confirm Switch
26-Main Menu Switch
27-Cancel Switch
28-Display Select Switch
29-Not Used
|
