A-Oil Filter

B-Drain

C-Cap

D-Dipstick

IMPORTANT: Change oil every 100 hours if fuel is more than 0.5 % sulfur.

Fill crankcase with seasonal viscosity grade oil or Torq-Gard Supreme ™ (250 hours change interval). If using Plus-50 ™ oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

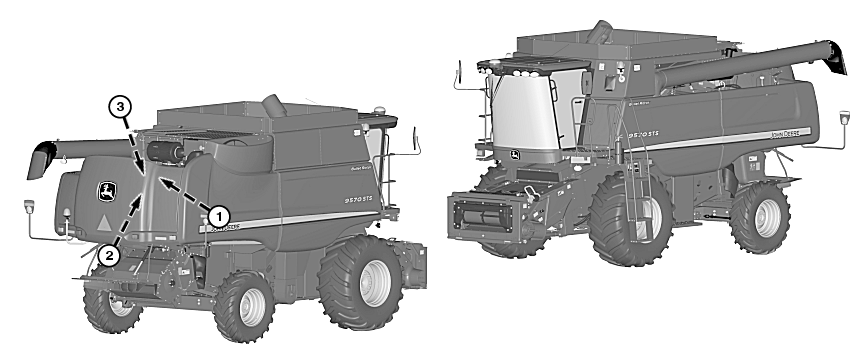

1. Engine Crank Case Oil Filter - Remove and replace oil filter (A).

2. Engine Crank Case Oil - Open drain (B) to remove oil.

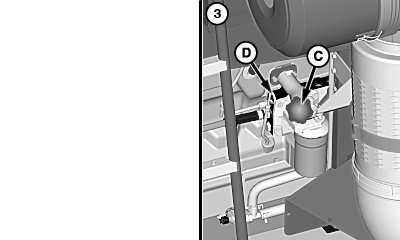

3. Engine Crank Case Oil - Remove cap (C) to fill and check oil level with dipstick (D) after filling.

Torq-Gard Supreme is a trademark of Deere & Company
Plus-50 is a trademark of Deere & Company

OUO6075,00002C7 -19-02FEB09-1/1
