Grain Tank Fill Sensors-Adjusting

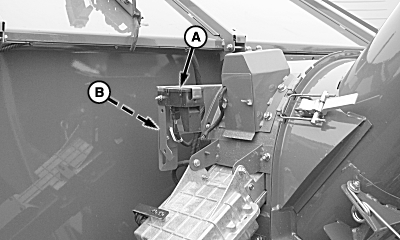

NOTE: Header drive must be engaged for buzzer to sound. Grain Tank 3/4 Full Sensor: Grain tank 3/4 full sensor (A) is located on the front right-hand side of the clean grain loading auger. Grain tank 3/4 full icon appears on the CommandCenter display indicating grain tank is almost full. Grain tank 3/4 full icon displays immediately, but a two second delay occurs between the tripping of the sensor and the buzzer sounding. When grain tank is 3/4 full, beacon lights illuminate to provide a signal to the grain cart operator that grain tank is nearly full. Adjust sensor by moving it higher or lower in slot (B) to adjust the switch "trip" point. The higher the sensor is positioned, the fuller the grain tank will be at the time the buzzer sounds. |
|
CAUTION:
Shut OFF engine, set parking brake and remove key.
OUO6075,000034D -19-17APR09-1/2 |
|

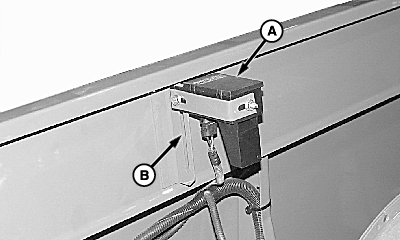

Grain Tank 4/4 Full Sensor: Grain tank 4/4 full sensor (A) is located on the right-hand grain tank cover above the clean grain loading auger. Grain tank 4/4 full icon appears on the CommandCenter display indicating grain tank is full. Grain tank 4/4 full icon displays immediately, but a two second delay occurs between the tripping of the sensor and the buzzer sounding. Adjust sensor by moving it higher or lower in slot (B) to adjust the switch "trip" point. The higher the sensor is positioned, the fuller the grain tank will be at the time the buzzer sounds. |
|
OUO6075,000034D -19-17APR09-2/2 |
