OMHXE13768: 9570 STS Combine(9570 STS 735101- ), Block File: OUO6075_0000736_19

causym CAUTION: Shut OFF engine, set parking brake and remove key.

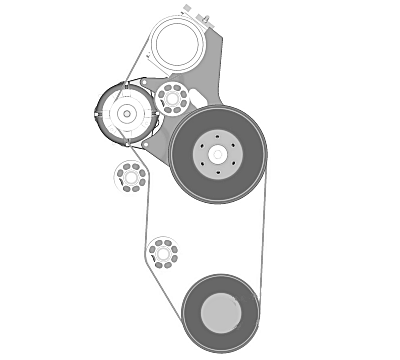

1. Loosen nut (A) and remove rotary screen drive belt (B).

A-Nut
B-Rotary Screen Drive Belt

OUO6075,0000736 -19-15MAR07-1/3

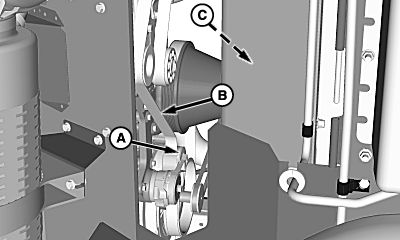

2. Use a breaker bar to relieve belt tension from tensioner arm (A).

3. Remove belt (B) and work belt over fan blades (C) to remove.

4. Install belt in reverser order.

A-Tensioner Arm
B-Belt
C-Fan Blades

OUO6075,0000736 -19-15MAR07-2/3

5. Install belt (B) in reverse order.

6. Tighten nut (A) until gauge aligns with end of spring.

A-Nut
B-Belt

OUO6075,0000736 -19-15MAR07-3/3
