Discharge Beater Belt-Replacing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

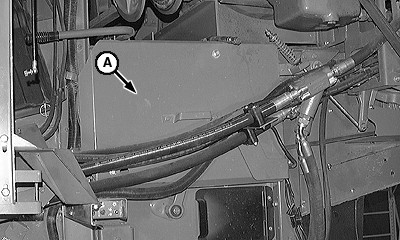

Remove shield (A) from left-hand rear of machine.


A-Shield

H51927

OUO6075,0000757 -19-23APR07-1/2

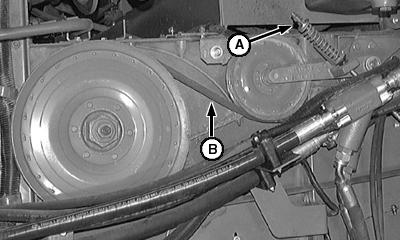

Loosen spring tensioner nut (A) and remove belt (B).

Install replacement belt and adjust tensioner so washer is positioned between end of gauge and bottom of step.


A-Nut
B-Belt

H51928
