Chopper-Lowering
1.

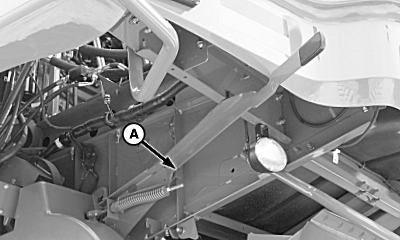

Remove drive belt (A) from storage position.
A-Drive Belt
|
|
|
|
OUO6075,0000889 -19-08AUG07-1/4
|
|
2.

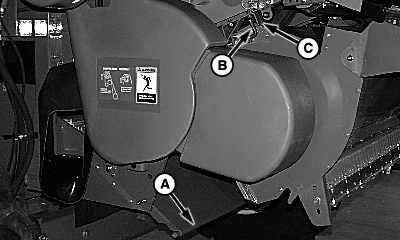

Place lower deflector door (A) in middle position.
3.
Release lock-out pins (B) on both sides. Pull pins rearward and rotate up until handle rest on lockout bracket (C).
A-Lower Deflector Door
B-Lock-Out Pins
C-Lockout Bracket
|
|
|
|
OUO6075,0000889 -19-08AUG07-2/4
|
|
4.
Push switch (A) down to lower chopper.
A-Switch
|
|
|
|
OUO6075,0000889 -19-08AUG07-3/4
|
|
5.

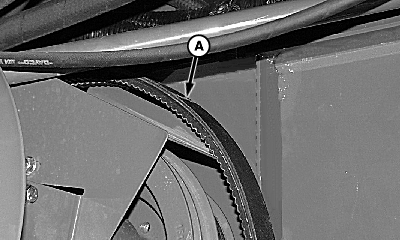

Place drive belt on desired drive speed sheaves.
6.

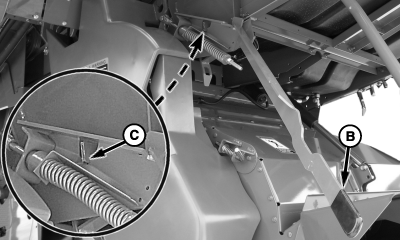

Lift arm from slot in bracket (A).
7.
Pull arm (B) out and down to put tension on drive belt. Secure arm in slot (C).
A-Bracket
B-Arm
C-Slot
|
|
|
|
OUO6075,0000889 -19-08AUG07-4/4
|
|
