Driving Machine on Roads

IMPORTANT: Verify that grain tank is unloaded before transporting machine on road.

1. Empty grain tank and swing unloading auger to storage position.

2. Use folding auger switch (A) (if equipped) to fold unloading auger rearward to transport position.


A-Folding Auger Switch

H87216

OUO6075,0000265 -19-07JAN09-1/7

causym CAUTION: Swing ladder to the full forward position to reduce machine width and to orient warning light toward oncoming motorists.

IMPORTANT: Travel at a reasonable speed for road or field conditions. Never transport on the road with grain in the tank. Always use warning lights.

Follow local regulations for equipment size, lighting and marking before driving on public roadways.

NOTE: For machines with long 1390 mm (55 in.) ladder extension the ladder cannot be positioned in the full forward position. A transport position 9° out from full forward has been provided. (See Cab Ladder Positions).

3. Use lever (A) to unlock ladder and swing to the full forward position.

4. Fold radio antenna down and retain with hook (if equipped). If hook is not available, retain antenna to cab roof with tape.

H72668


A-Lever

OUO6075,0000265 -19-07JAN09-2/7

5. Lock brake pedals together with lock (B) when driving on roads. Leave pedals (A) unlocked for field operation.

causym CAUTION: Use the seat belt whenever you operate the machine or ride as an observer.

6. Fasten seat belt.

causym CAUTION: Sound horn before starting engine to clear people away from the machine.

7. Sound horn and start engine. Use cold weather starting aid if needed.

H68175


A-Pedals
B-Lock

OUO6075,0000265 -19-07JAN09-3/7

8. Raise header with header switch (A).

9. Non ProDrive Machines: Disengage parking brake (B) with pedal (C).


A-Header Raise/Lower Switch
B-Parking Brake
C-Pedal

H86734
H61170

OUO6075,0000265 -19-07JAN09-4/7

NOTE: After transporting machine, press road transport disconnect switch for two seconds allowing indicator light to turn OFF and allowing desired switch functions to operate.

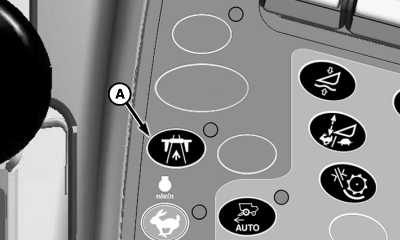

10. Engage road transport disconnect switch (A).


A-Road Transport Disconnect Switch

H87333

OUO6075,0000265 -19-07JAN09-5/7

causym CAUTION: When transporting on a road or highway, flashing warning lights and taillights on both sides provide a warning to operators of vehicles approaching from the front and rear. These warning lights must be turned ON when driving the machine on a public road. Swing cab ladder fully forward to orient warning lights towards oncoming motorists. Do not operate flashing warning lights if prohibited by law.

11. Turn beacon/hazard light switch (A) ON for both daytime and nighttime road travel. Turn ON road lights (B) for nighttime travel. Warning lights automatically operate when the hazard lights are ON.

NOTE: Turn signal lights on steering column burn steadily to indicate a turn.

12. Use turn signals as needed. They are not self canceling.

H92849


A-Beacon/Hazard Light Switch
B-Road Light Switch

OUO6075,0000265 -19-07JAN09-6/7

13. Press engine speed switch (A) for maximum engine speed.

NOTE: For field operation, select a gear according to working conditions.

14. Non ProDrive Machines: Engage 3rd gear for road travel.

causym CAUTION: If transporting machine with header attached, travel at a reasonable speed to ensure adequate braking performance and control of machine.

15. Slowly move multifunction control handle forward or rearward. When coming to the top of a hill, pull back on the multifunction control handle before starting down the other side.

H86737


A-Engine Speed Switch
