Spreader Disc Assemblies

Spreader disc assemblies can be removed for service or to provide additional clearance under spreader.

CAUTION: Disc assemblies weigh approximately 25 kg (55 lb).

IMPORTANT: Disc assemblies are left-handed and right-handed. In order to assure correct installation, mark disc assemblies before removal.

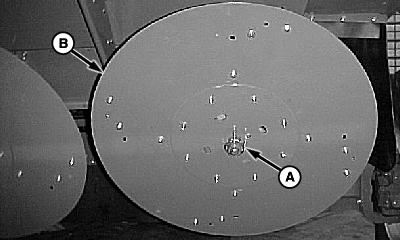

Remove quick-lock pins (A) from spreader shafts and remove disc assemblies (B).

A-Quick-Lock Pins
B-Disc Assembly
