Check engine air scoop (A) as needed for crop debris or foreign material.
Remove quick-lock pins (B) and open lower radiator door (C) to cleanout debris or material.

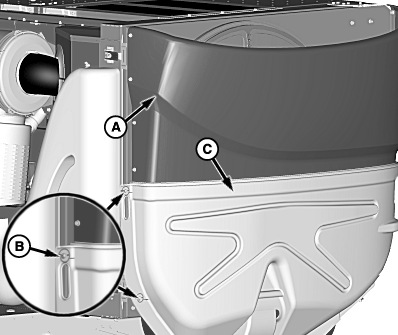

A-Engine Air Scoop B-Quick-Lock Pins C-Lower Radiator Door
OUO6075,0000876 -19-15MAR07-1/1
