Hydraulic Cylinder Safety Stop

CAUTION: Shut OFF engine, set parking brake and remove key.

Cracking of hydraulic line fittings to lower feeder house results in an instantaneous dropping of feeder house and header.

TS696
TS696-UN-21SEP89

H90891
H90891-UN-26FEB08

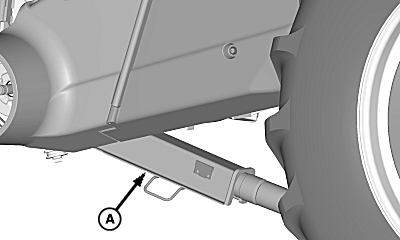

A - Safety Stop

Lower safety stop (A) onto hydraulic cylinder rod.

OUO6075,0000001-19-20080307
