Chopper Vanes—Factory Settings

NOTE: For header sizes less than 7.6 m (25 ft.), lower tailboard support arms one hole at a time to reach desired spread width pattern, refer to Chopper Tailboard—Adjusting in this section for further information.

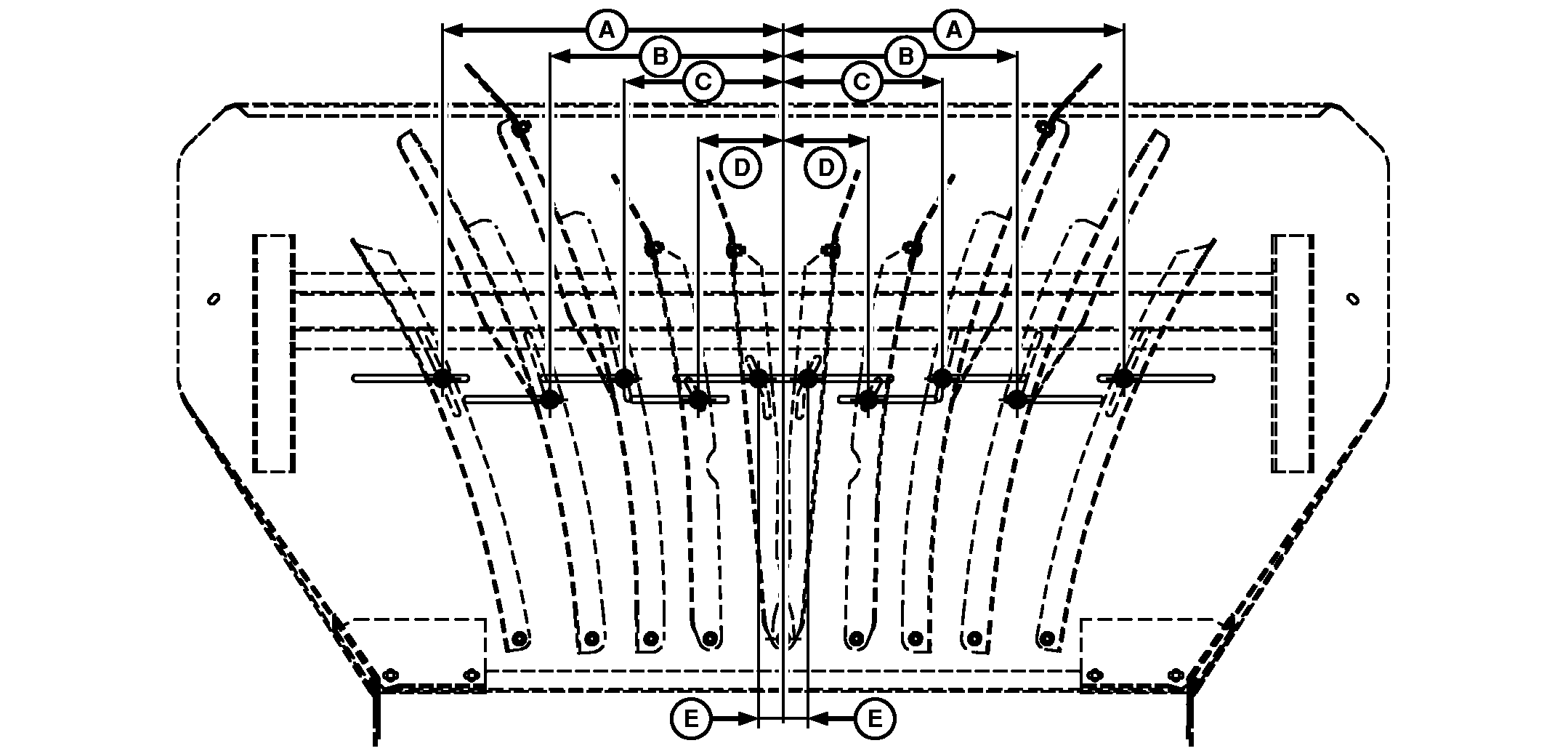

H92975-UN-09OCT08

Chopper Settings For 7.6 m (25 Ft.) Platforms

A - 485 mm (19.1 in.)

B - 333 mm (13.1 in.)

C - 227 mm (8.9 in.)

D - 122 mm (4.8 in.)

E - 35 mm (1.4 in.)

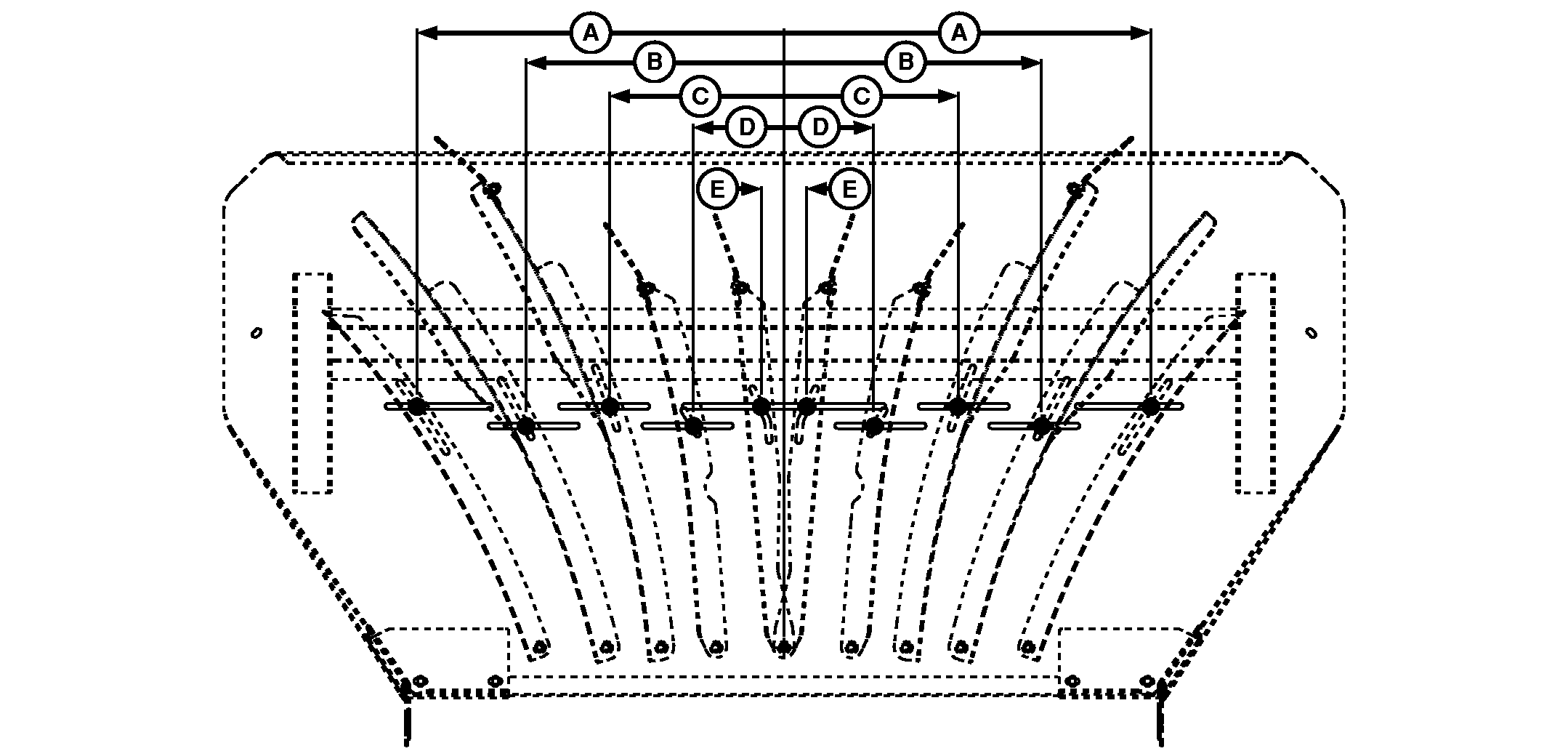

H92976-UN-09OCT08

Chopper Settings For 9.2 m (30 Ft.) Platforms

A - 565 mm (22.2 in.)

B - 397 mm (15.6 in.)

C - 268 mm (10.6 in.)

D - 140 mm (5.5 in.)

E - 35 mm (1.4 in.)
