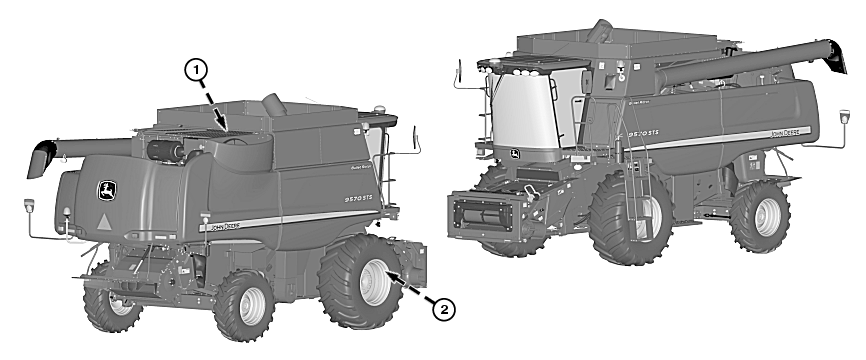

Every 10 Hours

1. IMPORTANT:


   H93333-UN-02FEB09


   H91171-UN-17APR08

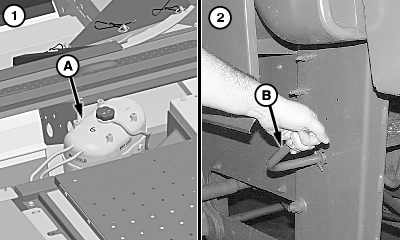

   A - Surge Tank

   B - Lever

   Service times are for average conditions. Service more often if machine is used in extreme conditions.

   Surge Tank - Check engine coolant level in surge tank (A) with engine cold. Level must be up to “Max Cold” line.

---




2. Stone trap - At end of each day, dump stone trap with lever (B).
