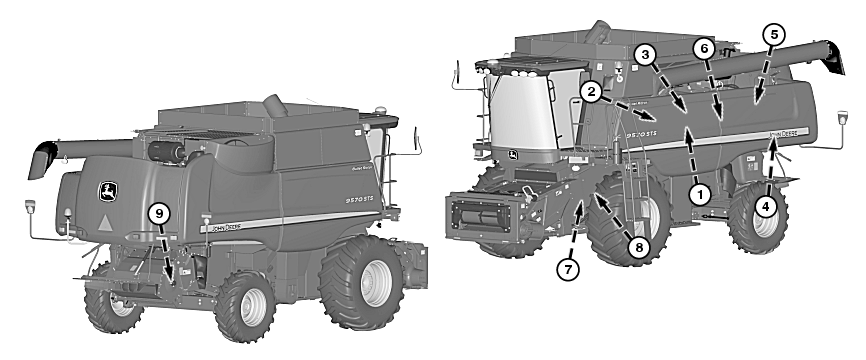

Every 400 Hours

H93341
H93341-UN-02FEB09

H86791
H86791-UN-04APR07

H86792
H86792-UN-17DEC07

H86793
H86793-UN-16FEB07

H86794
H86794-UN-17DEC07

  1. H86795
    H86795-UN-16FEB07

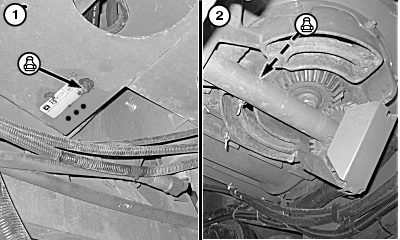

    Unloading Auger Upper Gearcase - Grease fitting.


  2. Unloading Auger Lower Gearcase Bearing - Grease fitting.

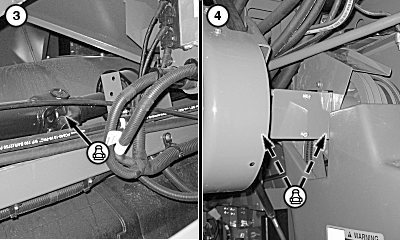

  3. Primary Countershaft Universal Joint - Rotate to access fitting and grease.

  4. Chopper and Discharge Beater Countershaft Bearings - Grease two fittings.

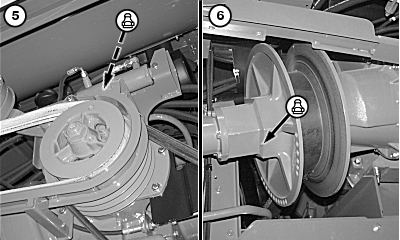

  5. Chopper/Unloading Driveshaft Bearing - Rotate sheave to access fitting on bottom of sheave groove and grease fitting.

  6. IMPORTANT: Remove pipe plug and install grease fitting. Pump 40 to 45 shots of grease into fitting. DO NOT OVER GREASE. Remove grease fitting and reinstall pipe plug.

    Variable Speed Driver Sheave - Close sheaves (high speed) before greasing at pipe plug in outer sheave hub. Rotate sheave for pipe plug access. Cycle cylinder speed to distribute grease if operated at high speed all the time.

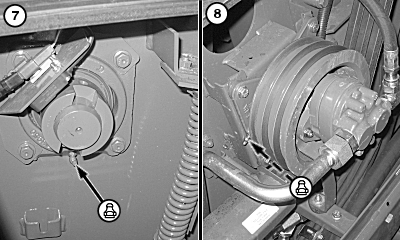

  7. Feed Accelerator Bearing (Left Side) - Grease fitting.

  8. Header/Reel Drive Pump Sheave Bearing - Grease fitting.

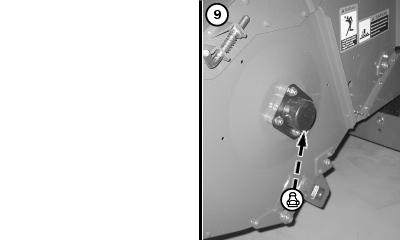

  9. Chopper Rotor Bearings - Grease fitting (both sides).

OUO6075,00002CB-19-20090202
