Every 400 Hours

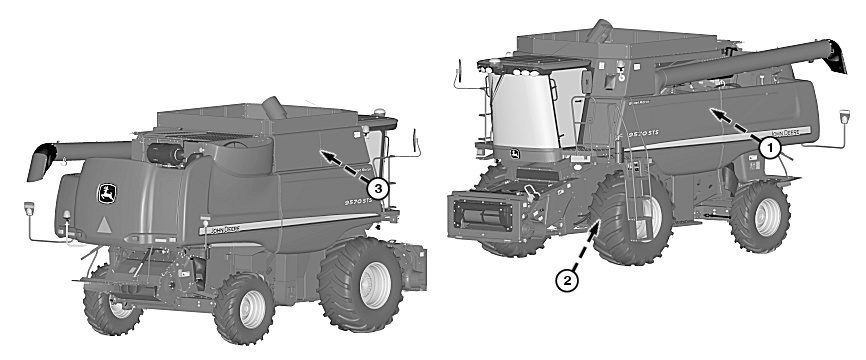

  1. H93347
    H93347-UN-02FEB09

    H86807
    H86807-UN-19APR07

    H86808
    H86808-UN-14MAR07

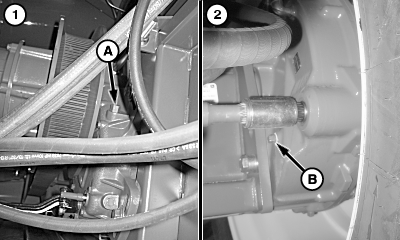

    A - Dipstick

    B - Plug

    Separator Drive - Remove dipstick (A) and check oil level. Oil level should be between grooves on dipstick. Add oil as needed.


  2. Final Drive Oil - Remove plug (B) and check oil level (both sides). Oil should be within 12 mm (1/2 in) of bottom of hole. Add oil as needed.

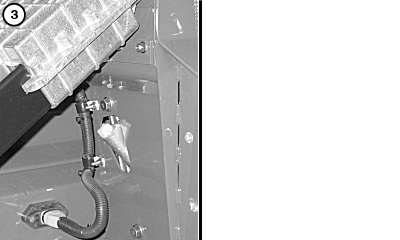

  3. NOTE: Loading auger gearcase does not need to be drained.

    Loading Auger Gearcase - Check oil level with dipstick and add oil as needed.

OUO6075,00002CF-19-20090202
