Every 2000 Hours or Six Years

1.
   H93350-UN-02FEB09


   H91173-UN-17APR08

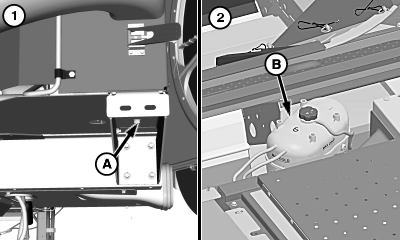

   A - Drain

   B - Surge Tank

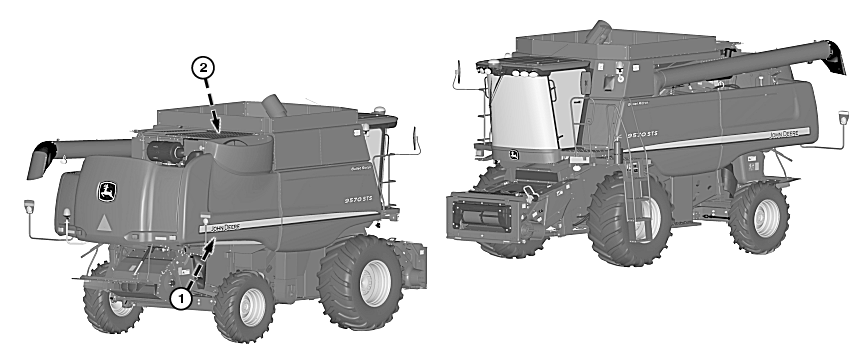

   Radiator - Open drain (A) to remove coolant from radiator.

---




2. Surge Tank - Flush and refill with correct coolant and conditioner (see Cooling System—Draining in Service Engine section and Engine Coolant recommendations given in Fuels and Lubricants section). Check engine coolant level in surge tank (B) with engine cold. Level must be up to “Max Cold” line.
