First 100 Hours

1. IMPORTANT:


   H93338-UN-02FEB09


   H86784-UN-06NOV06


   H86785-UN-06NOV06

   A - Oil Filter

   B - Drain

   C - Cap

   D - Dipstick

   Change oil every 100 hours if fuel is more than 0.5 % sulfur.

   Fill crankcase with seasonal viscosity grade oil or Torq-Gard Supreme™ (250 hours change interval). If using Plus-50™ or Plus-50™ II oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

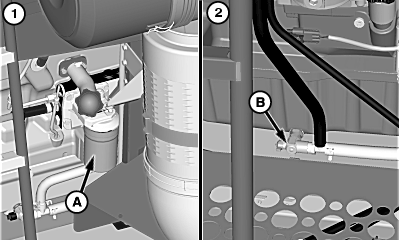

   Engine Crank Case Oil Filter - Remove and replace oil filter (A).

---




2. Engine Crank Case Oil - Open drain (B) to remove oil.

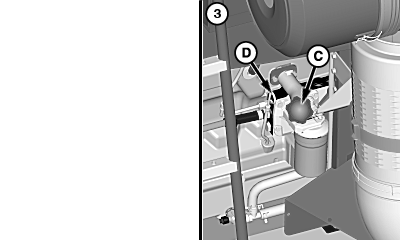

3. Engine Crank Case Oil - Remove cap (C) to fill and check oil level with dipstick (D) after filling.
