Break-In Check After 100 Hours

H81205
H81205-UN-15JUN04

H85591
H85591-UN-23MAR06

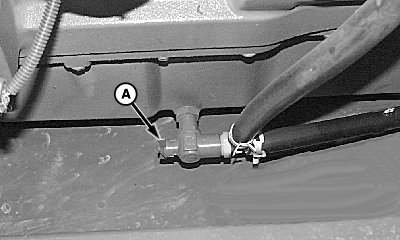

A - Drain

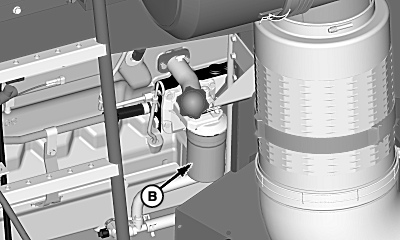

B - Oil Filter

Drain crankcase oil by opening drain (A) and close once oil is drained.

Remove and dispose of oil filter (B) properly.

Clean filter mount base, apply oil to gasket and install new filter element. Hand tighten only.

Fill crankcase with proper amount of engine oil, (see Diesel Engine Oil in Fuel And Lubricants section for oil specification).

IMPORTANT: If diesel fuel sulfur content exceeds 0.7 percent, change oil every 100 hours.

OUO6075,00006E2-19-20100317
