Fuel System—Bleeding

CAUTION: Shut OFF engine, set parking brake and remove key before performing maintenance work.

H85603
H85603-UN-23MAR06

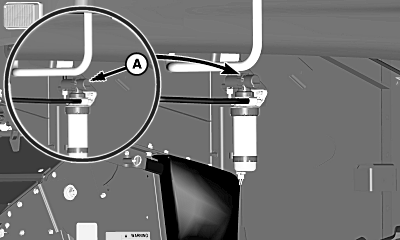

A - Fuel Pump

Air can enter fuel system when changing fuel filters or when machine has run out of fuel. Air in fuel system could prevent engine from starting. If engine will not start, turn key switch ON for 60 seconds to allow fuel pump (A) to prime fuel system.

OUO6075,0000732-19-20070315
