Threshing Elements and Tines—Remove and Install

1. IMPORTANT: Rotor is a balanced assembly. Elements and tines must be replaced in sets of three to maintain balance. Replacement kits are available through service parts and include new cap screws with pre-applied Threadlock and Sealer. Tines or elements that become loose may result in machine damage.

   If tines or elements need to be removed for other than replacement, mark location on tine(s)/element(s) and rotor, prior to removal. Install in same location as removed to maintain balance. Always use new cap screws.

   Make sure to clean out tailings and front cross auger if tine replacement is due to broken or damage tines. Failure to do so before initial start-up may allow broken tines to recirculate and cause tine damage to reoccur.


   H76682-UN-01MAY03


   H73898-UN-30OCT02

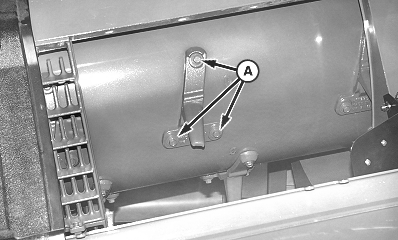

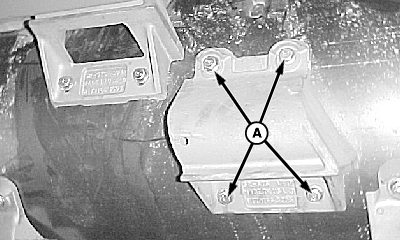

   A - Cap Screw

   Remove separator grates or concave sections as needed to access rotor. (See Concave Sections—Remove and Install.)

---




2. Inspect wear on threshing elements and separator tines using AH204933 Clearance Gauge.

3. Remove cap screws (A) and threshing element or tine.

4.
   H54006-UN-18FEB99

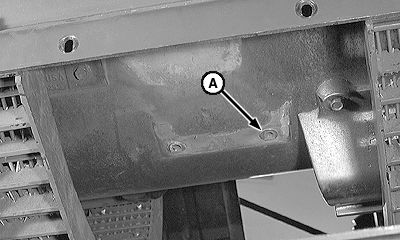

   A - Threaded Insert

   Inspect RIVNUT® threaded inserts (A). Replace if damaged.

---




5. If one element or tine needs replaced, replace all in the group. Example: If element 2 needs to be replaced, replace elements 1 and 3 also.

6. Use Threshing Elements and Separator Tine Location diagram for identifying elements and tines.

   Threshing Element Groups		Separator Tine Groups
   Group 1	Elements 1, 2, 3	Group 1	Tines 1, 4, 5
   Group 2	Elements 4, 5, 6	Group 2	Tines 2, 3, 6
   Group 3	Elements 7, 8, 9	Group 3	Tines 7, 10, 11
   Group 4	Elements 10, 11, 12	Group 4	Tines 8, 9, 12
   Group 5	Elements 13, 14, 15	Group 5	Tines 13, 17, 18
   		Group 6	Tines 14, 15, 16

7. Tighten cap screws to specification.

   Item	Measurement	Specification
   Threshing Element and Separator Tine Cap Screws	Torque	90 N˙m (66 lb-ft)
