Glow Plug Fuse
IMPORTANT: Do not replace original fuse with higher rated fuse or mechanical damage may occur. If original size fuse will not carry electrical load and continues to blow, have electrical system checked by your John Deere dealer.

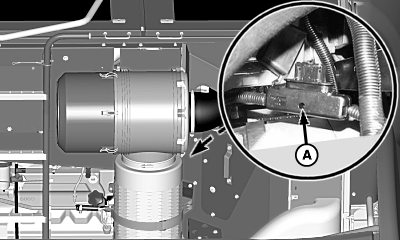

H85651-UN-24APR06
A - 50 Amp. Fuse (F61)
Fuse (A) is located by alternator. Fuse provides protection for glow plugs incase of an overload. If fuse is blown, inspect wiring harness on glow plug power circuit for possible damage before replacing fuse. Replace any damaged wiring before operating machine.OUO6075,00007E6-19-20070503 |
