Brake Fluid Reservoir

IMPORTANT: If you experience soft or spongy brakes, a loss of braking power or park brake will not hold, see your John Deere dealer.

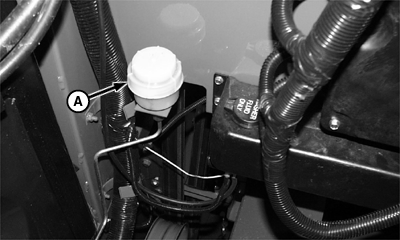

H62289
H62289-UN-20JAN00

A - Cap

Check fluid through cap (A). Be careful to keep dirt out of system.

Fluid should be 6 mm (1/4 in.) from top.

Use SAE J1703d or DOT-3 hydraulic brake fluid.

Keep fluid off of painted surfaces.

OUO6075,0000833-19-20070320
