Chopper—Lowering

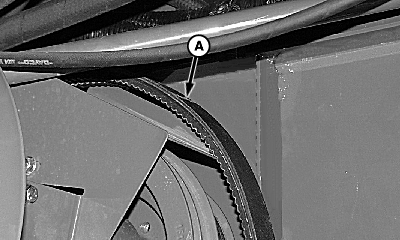

  1. H87935
    H87935-UN-24APR07

    A - Drive Belt

    Remove drive belt (A) from storage position.

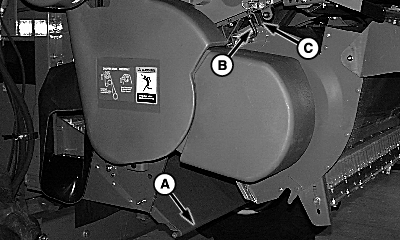

  2. H71801
    H71801-UN-24APR02

    A - Lower Deflector Door

    B - Lock-Out Pins

    C - Lockout Bracket

    Place lower deflector door (A) in middle position.


  3. Release lock-out pins (B) on both sides. Pull pins rearward and rotate up until handle rest on lockout bracket (C).

  4. H69985
    H69985-UN-13SEP01

    A - Switch

    Push switch (A) down to lower chopper.

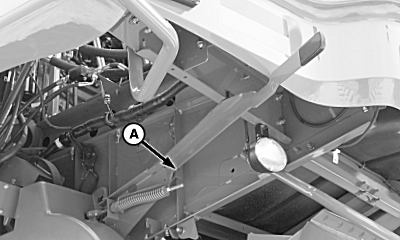

  5. H89503
    H89503-UN-08AUG07

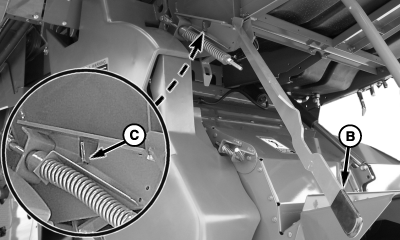

    H87253
    H87253-UN-22JAN07

    A - Bracket

    B - Arm

    C - Slot

    Place drive belt on desired drive speed sheaves.


  6. Lift arm from slot in bracket (A).

  7. Pull arm (B) out and down to put tension on drive belt. Secure arm in slot (C).

OUO6075,0000889-19-20070808
