Chopper Drive Belt Tension—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

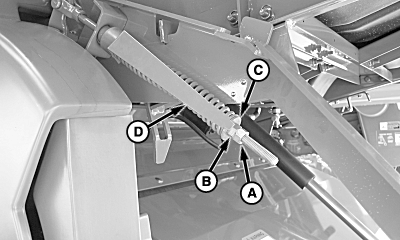

H87259
H87259-UN-22JAN07

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Chopper belt idlers are located on left-hand side above the chopper.

Spring tensioning assembly must be in the drive engaged position.

Loosen lock nut (A).

Tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
