Chopper to Windrow/Servicing Position

CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: Chopper tensioner arm must be in detensioned belt position to raise chopper. If arm is in tensioned position, safety switch (A) will not allow chopper to raise.

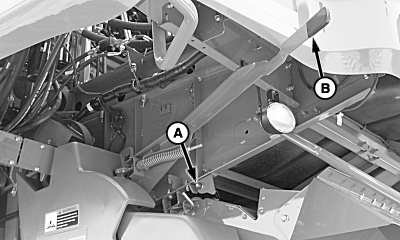

H89505
H89505-UN-08AUG07

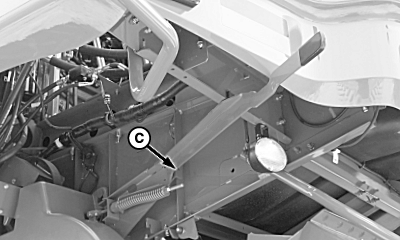

H89506
H89506-UN-08AUG07

A - Safety Switch

B - Arm

C - Bracket

Pull arm (B) down, outward and up to release chopper belt tension.

Lift and place arm in slot on bracket (C) to hold in detensioned position.

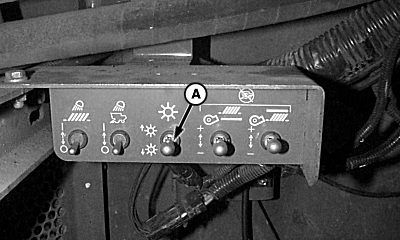

H69985
H69985-UN-13SEP01

A - Switch

Switch (A), located on left-hand side sheet above rear axle, raises and lowers the chopper. Push switch up to raise chopper.

Raise chopper assembly until lock-out pins snap into place.

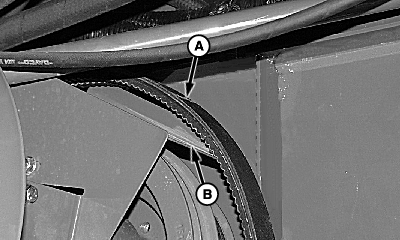

H87936
H87936-UN-24APR07

A - Drive Belt

B - Guard

Place drive belt (A) on top of guard (B), so belt does not turn while chopper is in windrow position.

OUO6075,000088C-19-20070808
