Feeder House Drum—Height Adjustment

CAUTION: Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

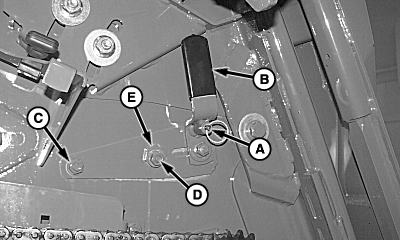

H82594-UN-09MAR05

Corn Only Position

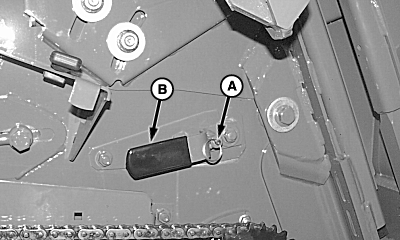

H82595-UN-09MAR05

Small Grain Position

A - Pin

B - Drum Height Handle

C - Nut

D - Nut

E - Cam

Pull and hold pin (A) while rotating handle (B) to small grain position, both sides.

In small grain crops, loosen nut (C and D) on both sides and rotate cam (E) until an equal distance and desired slat to floor clearance is achieved. Tighten nuts to specification.

Item	Measurement	Specification
Drum Height Adjusting Nut	Torque	87 N˙m (64 lb-ft)

Place handle in desired crop position.
