Feeder House Drum—Height Adjustment

CAUTION: Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

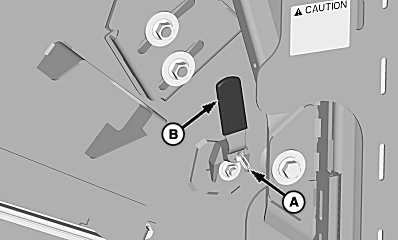

H90908-UN-27FEB08

Corn Only Position

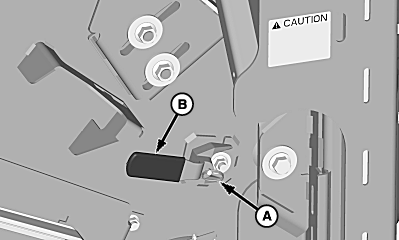

H90909-UN-27FEB08

Small Grain Position

A - Pin

B - Drum Height Handle

Pull and hold pin (A) while rotating handle (B) to desired crop position on both sides.

Close feeder house shields.
