Header Reel/Belt Pickup Pump Belt (Variable Speed Feeder House)—Replacing

CAUTION:

H90912
H90912-UN-28FEB08

A - Rubber Boot

B - Bracket

Lower variable sheave is under spring tension; if belt is removed, it will snap back to a closed position.

Start engine, engage separator and move switch to fast idle. Adjust feeder house drive belt to slow front shaft speed.

CAUTION: Shut OFF engine, set parking brake and remove key.

Disengage separator, stop engine, and remove key.

Lower safety stop and remove left-hand feeder house shields.

Look under rubber boot (A) to verify if upper sheaves are fully open. At low speed position, outer sheave half bulb is against bracket (B).

H90914
H90914-UN-28FEB08

A - Idler Nut

B - Sheave

Loosen idler nut (A) and slide sheave (B) down to release tension on drive belt.

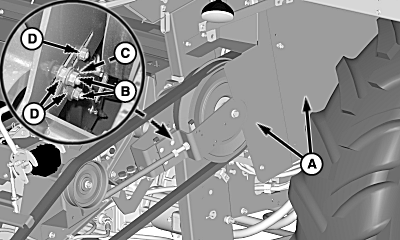

H90918
H90918-UN-05MAR08

A - Shields

B - Nuts (2 Used)

C - Sensor Bracket

D - Nuts (3 Used)

Remove shields (A), nuts (B) and sensor bracket (C).

Loosen nuts (D) to allow upper sheave assembly to move.

NOTE:

H90913
H90913-UN-28FEB08

A - Nut

B - Bracket

C - Nut

D - Tensioner

Nut (C) must be moved and jammed against nut (A). Together these nuts can be used to turn tensioner bolt.

Loosen nut (A) away from bracket (B) until a 3 mm (1/8 in.) gap exists between either side of bracket.

Tighten nut (C) against nut (A).

NOTE: Threading bolt into tensioner allows sheave to move forward to remove drive belt.

Use nut (A) to screw threaded bolt into tensioner (D).

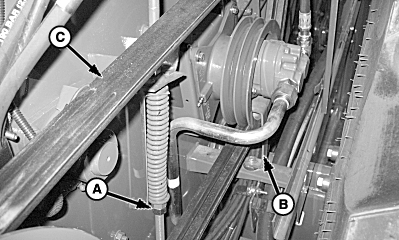

H90977
H90977-UN-06MAR08

A - Nuts

B - Brace

C - Drive Belt

Loosen nuts (A) to relieve tension from drive belt.

Remove cap screw and nut to move reel pump brace (B) out of way so drive belt (C) can be removed.

NOTE:

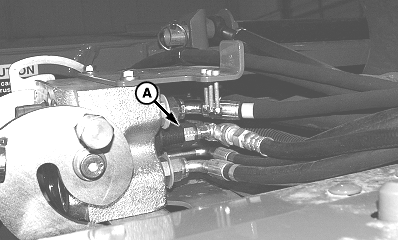

H84326
H84326-UN-26AUG05

A - Hydraulic Hose

Cap hydraulic hose to prevent system contamination and fluid loss.

Disconnect hydraulic hose (A) from multi-coupler.

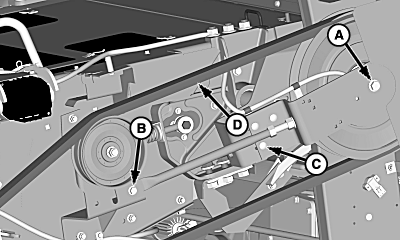

H90919
H90919-UN-28FEB08

A - Cap Screw

B - Cap Screw and Nut

C - Round Head Bolt (3 used)

D - Drive Belt

Remove cap screw (A), cap screw and nut (B) and round head bolts (C).

Remove drive belt (D) from rear sheave.

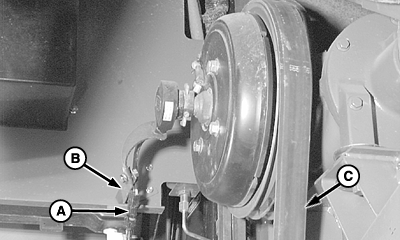

H87527
H87527-UN-27FEB07

A - Connector

B - Bracket

C - Drive Belt

Disconnect connector (A) and remove strap from bracket (B).

Remove and discard drive belt (C).

Install replacement drive belt, connect strap to bracket and connect electrical connector.

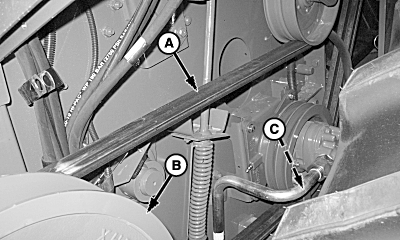

H90978
H90978-UN-06MAR08

A - Drive Belt

B - Sheave

C - Brace

Install drive belt (A) around reel pump and rear sheaves (B).

Install previously removed reel pump brace (C) with cap screw and nut.

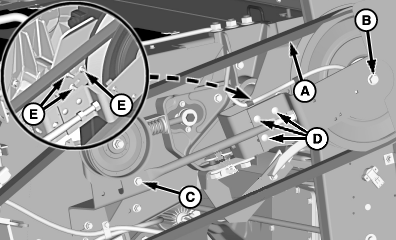

H90920
H90920-UN-31MAR10

A - Drive Belt

B - Cap Screw

C - Cap Screw and Nut

D - Round Head Bolt (3 used)

E - Nuts (3 Used)

Install drive belt (A) around rear sheave.

Install cap screw (B) and tighten to specification.

ItemMeasurementSpecification
Cap ScrewTorque185 N·m (136 lb-ft)

Tighten cap screw and nut (C).

Leave round head bolts (D) loose at this time.

Tighten nuts (E) to prevent upper sheave assembly from moving.

H84326
H84326-UN-26AUG05

A - Hydraulic Hose

Connect hydraulic hose (A) to multi-coupler.

NOTE:

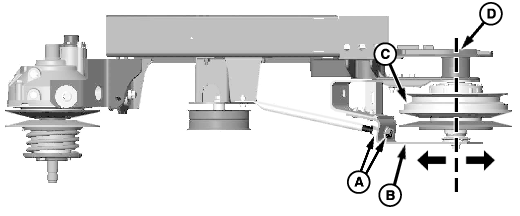

H84440
H84440-UN-13SEP05

Top View

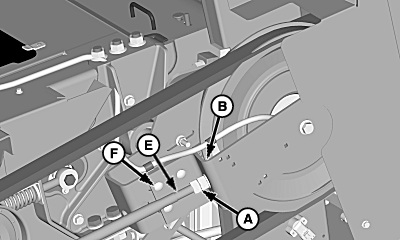

H90921
H90921-UN-28FEB08

A - Nuts (2 used)

B - Outer Strap

C - Sheave (2 used)

D - Side Sheet

E - Cap Screw

F - Round Head Bolts (3 used)

Check alignment of upper countershaft sheaves (C). Make sure that sheaves are running parallel to feeder house side sheet. Parallel alignment of countershaft sheaves must be adjusted by loosening round head bolts (F) and using nuts (A) on bolt (E).

Using nuts (A), turn bolt (E) to move outer strap (B) forward or rearward to align sheaves (C) parallel to feeder house side sheet (D).

Tighten round head bolts (F) to specification.

ItemMeasurementSpecification
Countershaft Strap Round Head BoltsTorque54 N·m (40 lb-ft)

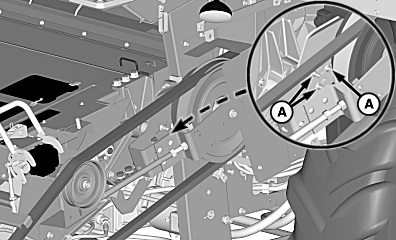

H90922
H90922-UN-28FEB08

A - Nuts (3 Used)

Loosen previously tightened nuts (A) and refer to Feeder House Variable Speed Belt—Adjusting to set sheave gap.
